Section 16 (Emission Control System (2GR-FKS) - Service Information (Except Hybrid))
>>
Purge Valve
>>
Components [06/2017 - ]
Components [06/2017 - ]
WARNING:
This page is about a different variant/trim than selected.

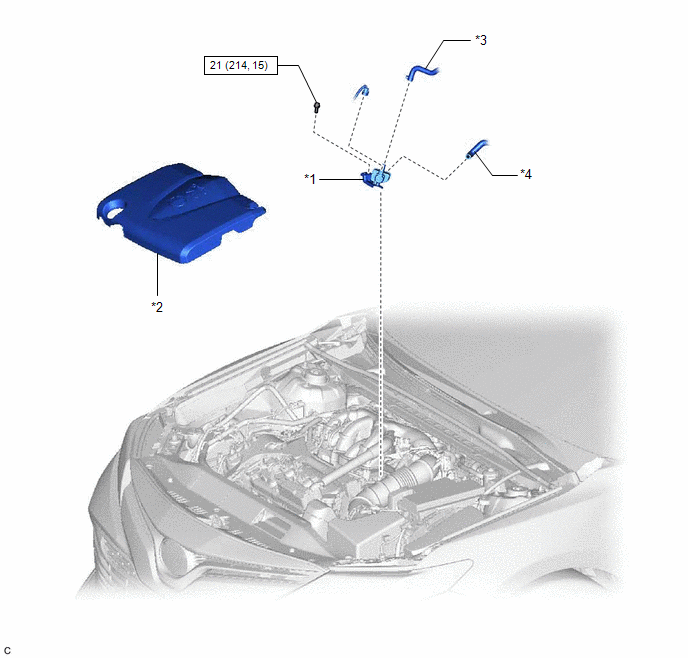

Fig 1: Purge Valve Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
PURGE VALVE (PURGE VSV)
*2
V-BANK COVER SUB-ASSEMBLY
*3
FUEL VAPOR FEED HOSE
*4
NO. 1 FUEL VAPOR FEED HOSE
N*m (kgf*cm, ft.*lbf): Specified torque
-
-
