Installation [06/2017 - ]: Procedure

HINT:

Only perform this procedure when replacement of the leak detection pump sub-assembly is necessary.

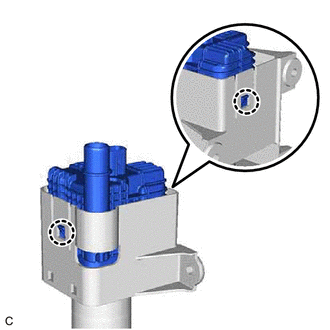

1. Engage the 2 claws to install a new leak detection pump sub-assembly to the No. 2 charcoal canister sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Do not allow foreign matter such as grease, oil or water to adhere to the O-ring.
   • Ensure that the claws are engaged properly.

1. Remove the rear suspension member sub-assembly.
2. Install the No. 2 charcoal canister sub-assembly to the vehicle body with the 3 nuts.

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

3. Connect the leak detection pump sub-assembly connector.
4. Push in the air line tube to the pipe (leak detection pump sub-assembly) until the air line tube makes a "click" sound.
   NOTE:

   • Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (leak detection pump sub-assembly) before performing this work.
   • After connecting the air line tube, check that the air line tube is securely connected by pulling on the tube connector.
5. Install the rear suspension member sub-assembly.

   Refer to INSTALLATION [06/2017 - 09/2019] , or refer to INSTALLATION [09/2019 - 10/2020] , or refer to INSTALLATION [10/2020 - ]

1. Install the clip to the vehicle body.

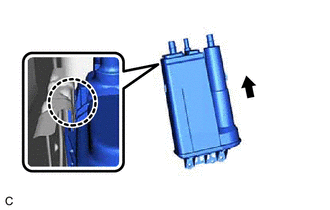

2. Engage the claw to install the canister (charcoal canister assembly) to the vehicle body as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Engage the clip to the canister (charcoal canister assembly).
4. Install the 2 bolts.

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

5. Connect the purge line hose to the canister (charcoal canister assembly) and slide the clip to secure it.

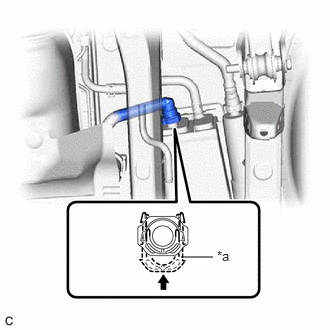

6. Push the vent line hose onto the canister (charcoal canister assembly) and push in the retainer to engage the lock claws.
   NOTE:

   • Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (canister (charcoal canister assembly)) before performing this work.
   • After connecting the vent line hose, check that the vent line hose is securely connected by pulling on the tube connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Retainer
   	Push in

7. Push the fuel tank vent hose onto the canister (charcoal canister assembly) and push in the retainer to engage the lock claws.
   NOTE:

   • Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (canister (charcoal canister assembly)) before performing this work.
   • After connecting the fuel tank vent hose, check that the fuel tank vent hose is securely connected by pulling on the tube connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Retainer
   	Push in

1. Install the 2 rear No. 1 stabilizer bar brackets to the vehicle body with the 4 bolts.

   Torque: 78 N*m (795 kgf*cm, 58 ft.*lbf)

1. Install 3 new gaskets to the front exhaust pipe assembly (TWC: Rear Catalyst) and center exhaust pipe assembly.
2. Connect the center exhaust pipe assembly to the 2 exhaust pipe supports.
3. Install the center exhaust pipe assembly to the front exhaust pipe assembly (TWC: Rear Catalyst), tail exhaust pipe assembly and tail exhaust pipe assembly LH with 6 new bolts and 2 new nuts.

   Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

Refer to PROCEDURE - Step 8

Refer to PROCEDURE - Step 9

Refer to PROCEDURE - Step 10

Refer to PROCEDURE - Step 11

Refer to PROCEDURE - Step 14
