Components [06/2017 - ]
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
VENTILATION HOSE |
*2 |
PURGE VALVE (PURGE VSV) |
| *3 |
NO. 1 FUEL VAPOR FEED HOSE |
*4 |
NO. 2 SURGE TANK STAY |
| *5 |
INTAKE AIR SURGE TANK ASSEMBLY |
*6 |
AIR SURGE TANK TO INTAKE MANIFOLD GASKET |
| *7 |
VACUUM HOSE SUB-ASSEMBLY |
*8 |
VACUUM HOSE |
| *9 |
NO. 2 AIR TUBE |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Do not apply lubricants (to the threaded parts) |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

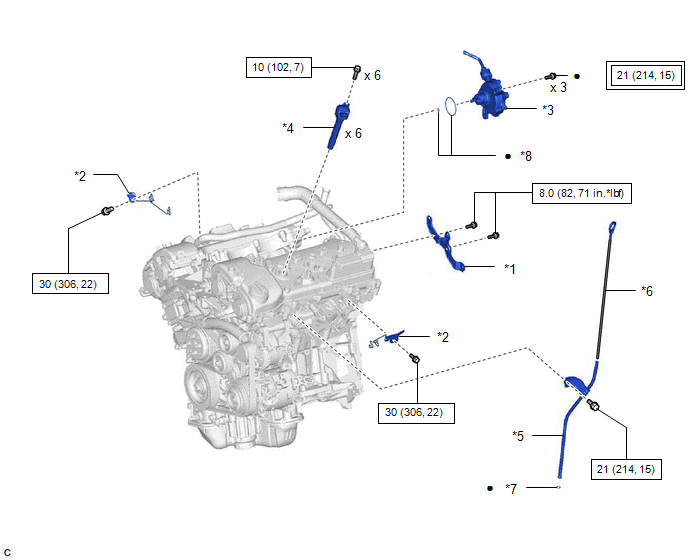

| Callout |
Description |
Callout |
Description |
| *1 |
WATER FILLER BRACKET |
*2 |
WIRE HARNESS CLAMP BRACKET |
| *3 |
VACUUM PUMP ASSEMBLY |
*4 |
IGNITION COIL ASSEMBLY |
| *5 |
ENGINE OIL LEVEL DIPSTICK GUIDE |
*6 |
ENGINE OIL LEVEL DIPSTICK |
| *7 |
ENGINE OIL LEVEL DIPSTICK GUIDE O-RING |
*8 |
O-RING |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
| • |
Non-reusable part |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *A |
Type A |
*B |
Type B |
| *1 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1) |
*2 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1) |
| *3 |
VVT SENSOR (for Intake Side of Bank 1) |
*4 |
VVT SENSOR (for Exhaust Side of Bank 1) |
| *5 |
CYLINDER HEAD COVER SUB-ASSEMBLY |
*6 |
CYLINDER HEAD COVER GASKET |
| *7 |
SPARK PLUG TUBE GASKET |
*8 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *9 |
O-RING |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Adhesive 1324 |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2) |
*2 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2) |
| *3 |
VVT SENSOR (for Intake Side of Bank 2) |
*4 |
VVT SENSOR (for Exhaust Side of Bank 2) |
| *5 |
CYLINDER HEAD COVER SUB-ASSEMBLY LH |
*6 |
NO. 2 CYLINDER HEAD COVER GASKET |
| *7 |
SPARK PLUG TUBE GASKET |
*8 |
O-RING |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Adhesive 1324 |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CAMSHAFT |
*2 |
NO. 2 CAMSHAFT |
| *3 |
CAMSHAFT BEARING CAP (for Bank 1) |
*4 |
NO. 2 CHAIN TENSIONER ASSEMBLY |
| *5 |
CAMSHAFT TIMING GEAR ASSEMBLY (for Bank 1) |
*6 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY (for Bank 1) |
| *7 |
CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 1) |
*8 |
NO. 2 CHAIN SUB-ASSEMBLY (for Bank 1) |
| *9 |
FUEL PUMP LIFTER HOUSING |
*10 |
CAMSHAFT BEARING CAP OIL HOLE GASKET |
| *11 |
CHAIN SUB-ASSEMBLY (for Bank 1) |
*12 |
NO. 1 CHAIN TENSIONER ASSEMBLY |
| *13 |
TIMING CHAIN COVER GASKET |
*14 |
TIMING CHAIN COVER PLATE |
| *15 |
CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 1) |
*16 |
NO. 1 CAMSHAFT BEARING CAP |
| *17 |
NO. 2 CAMSHAFT BEARING CAP |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
NO. 3 CAMSHAFT SUB-ASSEMBLY |
*2 |
NO. 4 CAMSHAFT SUB-ASSEMBLY |
| *3 |
CAMSHAFT BEARING CAP (for Bank 2) |
*4 |
NO. 3 CHAIN TENSIONER ASSEMBLY |
| *5 |
CAMSHAFT TIMING GEAR ASSEMBLY (for Bank 2) |
*6 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY (for Bank 2) |
| *7 |
CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 2) |
*8 |
NO. 2 CHAIN SUB-ASSEMBLY (for Bank 2) |
| *9 |
CAMSHAFT BEARING CAP OIL HOLE GASKET LH |
*10 |
CHAIN SUB-ASSEMBLY (for Bank 2) |
| *11 |
CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 2) |
*12 |
NO. 3 CAMSHAFT BEARING CAP |
| *13 |
NO. 4 CAMSHAFT BEARING CAP |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
