Removal [06/2017 - 10/2020]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [06/2017 - 09/2019] , or refer to PRECAUTION [09/2019 - 03/2020] , or refer to PRECAUTION [03/2020 - ]

  2. REMOVE BATTERY

    Refer to REMOVAL [06/2017 - 10/2020]

  3. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  4. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 19 [08/2018 - 10/2020]

  5. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 20 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 20 [08/2018 - 10/2020]

  6. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 21 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 21 [08/2018 - 10/2020]

  7. REMOVE ECM

    Refer to PROCEDURE - Step 5

  8. REMOVE BATTERY CLAMP SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 25 [08/2018 - 10/2020]

  9. REMOVE STARTER ASSEMBLY

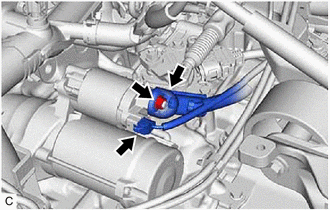

    1. Disconnect the starter assembly connector.
      GTY768404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Open the terminal cap.
    3. Remove the nut and disconnect the engine wire from the terminal 30.
    4. Remove the 2 bolts and starter assembly.
      GTY768403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
