Components [03/2020 - ]
WARNING: This page is about a different car, the 2024 Toyota Camry, 2023 Toyota Camry, 2022 Toyota Camry, 2021 Toyota Camry, and 2020 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

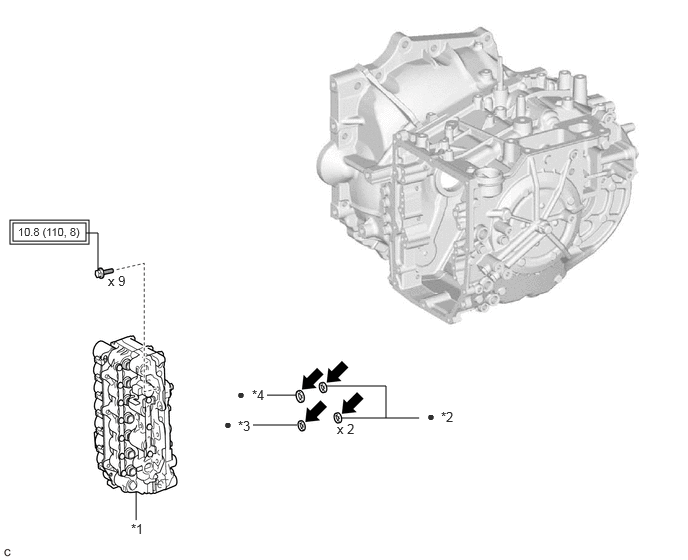

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
TRANSMISSION VALVE BODY ASSEMBLY |
*2 |
TRANSAXLE CASE GASKET |
| *3 |
NO. 1 FRONT OIL PUMP COVER GASKET |
*4 |
NO. 2 FRONT OIL PUMP COVER GASKET |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
• |
Non-reusable part |
|
Toyota Genuine ATF WS |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
MANUAL VALVE |
*2 |
SOLENOID (SL) VALVE |
| *3 |
SOLENOID (SL1) VALVE |
*4 |
SOLENOID (SL2) VALVE |
| *5 |
SOLENOID (SL3) VALVE |
*6 |
SOLENOID (SL4) VALVE |
| *7 |
SOLENOID (SL5) VALVE |
*8 |
SOLENOID (SL6) VALVE |
| *9 |
SOLENOID (SLU) VALVE |
*10 |
SOLENOID (SLT) VALVE |
| *11 |
SOLENOID LOCK PLATE |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
Toyota Genuine ATF WS |
