Removal [10/2020 - ]: Procedure

WARNING: This page is about a different car, the 2024 Toyota Camry, 2023 Toyota Camry, 2022 Toyota Camry, 2021 Toyota Camry, and 2020 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE BATTERY
Refer to REMOVAL [10/2020 - ]
REMOVE ECM
Refer to REMOVAL [10/2020 - 08/2022] , or refer to REMOVAL [08/2022 - ]
REMOVE BATTERY CLAMP SUB-ASSEMBLY
Refer to PROCEDURE - Step 25 [10/2020 - 08/2022] , or refer to PROCEDURE - Step 25 [08/2022 - ]
REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
Refer to REMOVAL [03/2020 - ]

REMOVE FRONT LOWER NO. 1 FLOOR HEAT INSULATOR

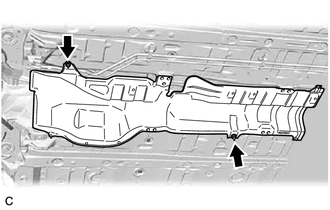

Remove the 2 nuts and front lower No. 1 floor heat insulator from the vehicle body.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY
Refer to REMOVAL [03/2020 - ]

REMOVE NO. 1 CONSOLE BOX DUCT (for Dual Type)

Remove the No. 1 console box duct.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY

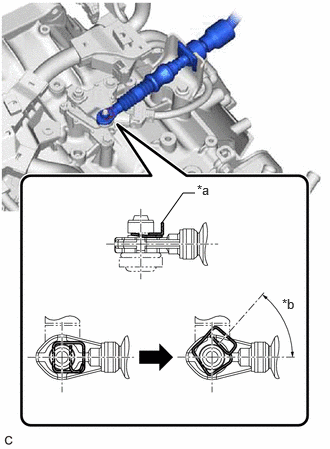

While disengaging the clip as shown in the illustration, disconnect the transmission control cable assembly from the transmission control shaft lever together with the clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Clip
*b	45° to 60°

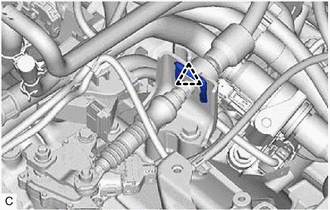

Remove the clip and disconnect the transmission control cable assembly from the No. 1 transmission control cable bracket.

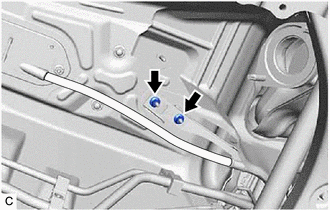

Remove the 2 nuts and disconnect the transmission control cable assembly from the vehicle body.

Remove the 2 nuts and then remove the transmission control cable assembly from the vehicle body.
