Removal [03/2020 - 10/2020]: Procedure

WARNING: This page is about a different car, the 2024 Toyota Camry, 2023 Toyota Camry, 2022 Toyota Camry, 2021 Toyota Camry, and 2020 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE STEERING WHEEL ASSEMBLY

    Refer to REMOVAL [03/2020 - 10/2020]

  2. REMOVE STEERING PAD SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)

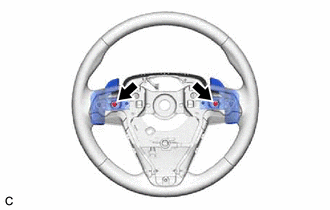

    1. Remove the 2 screws.
      GTY973188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 claws.
      GTY973128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 clamps to disconnect the 2 shift paddle switches (transmission shift switch assemblies) from the steering wheel assembly.
      GTY973138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

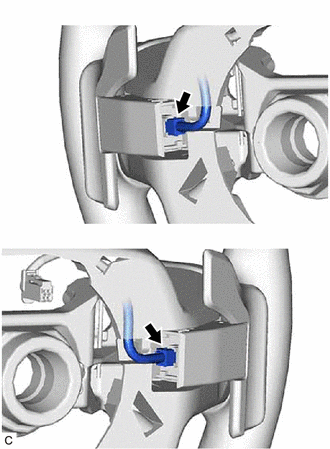

    4. Disconnect the 2 shift paddle switch (transmission shift switch assembly) connectors to remove the 2 shift paddle switches (transmission shift switch assemblies) from the No. 1 switch wire.
      GTY973242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 1 SWITCH WIRE

    HINT:

    Perform this procedure only when replacement of the No. 1 switch wire is necessary.

    1. Disengage the 2 guides and remove the No. 1 switch wire from the steering wheel assembly.
      GTY973258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
