Installation [03/2020 - ]: Procedure

WARNING: This page is about a different car, the 2024 Toyota Camry, 2023 Toyota Camry, 2022 Toyota Camry, 2021 Toyota Camry, and 2020 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NO. 1 SWITCH WIRE

    HINT:

    Perform this procedure only when replacement of the No. 1 switch wire is necessary.

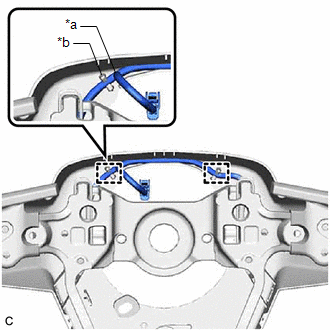

    1. Engage the 2 guides to install the No. 1 switch wire to the steering wheel assembly.
      GTY973229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Junction
      *b Guide
      NOTE:

      Make sure that the junction of the No. 1 switch wire is the right of the guide as shown in the illustration.

  2. INSTALL SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)
    1. Connect the 2 shift paddle switch (transmission shift switch assembly) connectors to install the 2 shift paddle switches (transmission shift switch assemblies) to the No. 1 switch wire.
    2. Engage the 2 clamps.
    3. Engage the 4 claws to install the 2 shift paddle switches (transmission shift switch assemblies) to the steering wheel assembly.
    4. Install 2 new screws.

      Torque: 1.7 N*m (17 kgf*cm, 15 in.*lbf)

  3. INSTALL STEERING PAD SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. INSTALL STEERING WHEEL ASSEMBLY

    Refer to INSTALLATION [03/2020 - ]
