Components [03/2020 - ]
WARNING: This page is about a different car, the 2024 Toyota Camry, 2023 Toyota Camry, 2022 Toyota Camry, 2021 Toyota Camry, and 2020 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

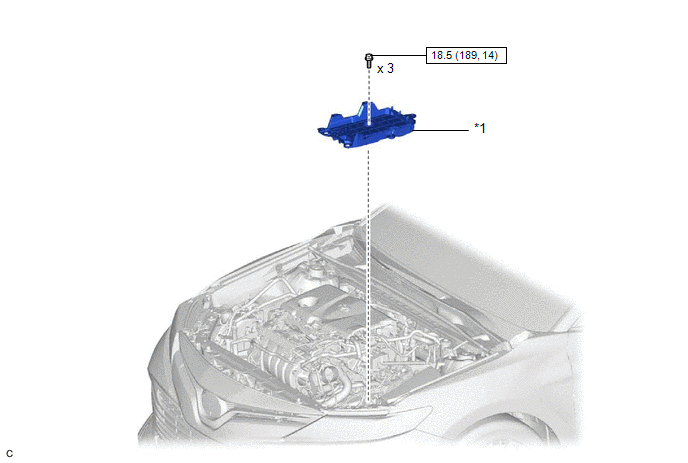

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
BATTERY CLAMP SUB-ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
TRANSMISSION CONTROL CABLE ASSEMBLY |
*2 |
TRANSMISSION CONTROL SHAFT LEVER |
| *3 |
PARK/NEUTRAL POSITION SWITCH ASSEMBLY |
*4 |
WASHER |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
- |
- |
