Components [03/2020 - ]
WARNING: This page is about a different car, the 2024 Toyota Camry, 2023 Toyota Camry, 2022 Toyota Camry, 2021 Toyota Camry, and 2020 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

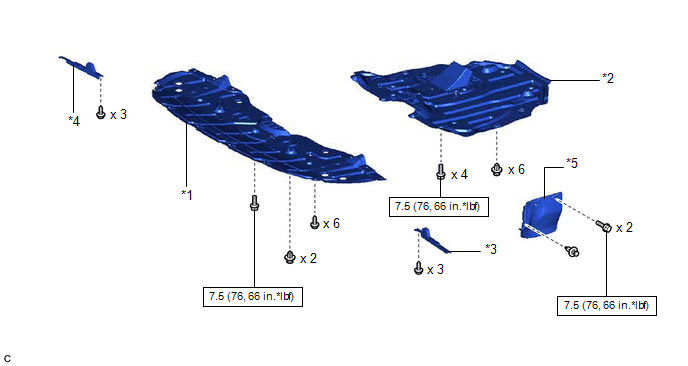

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
NO. 1 ENGINE UNDER COVER |
*2 |
NO. 2 ENGINE UNDER COVER ASSEMBLY |
| *3 |
FRONT WHEEL OPENING EXTENSION PAD LH |
*4 |
FRONT WHEEL OPENING EXTENSION PAD RH |
| *5 |
FRONT FENDER APRON SEAL LH |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
REFILL PLUG |
*2 |
NO. 1 TRANSMISSION OIL FILLER TUBE |
| *3 |
OVERFLOW PLUG |
*4 |
GASKET |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
• |
Non-reusable part |
|
Toyota Genuine ATF WS |
- |
- |
