Components [03/2020 - 10/2020]
| Callout | Description | Callout | Description |
| *1 | EXHAUST MANIFOLD (TWC: Front Catalyst) | *2 | MANIFOLD STAY |
| *3 | NO. 1 EXHAUST MANIFOLD HEAT INSULATOR | *4 | EXHAUST MANIFOLD TO HEAD GASKET |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

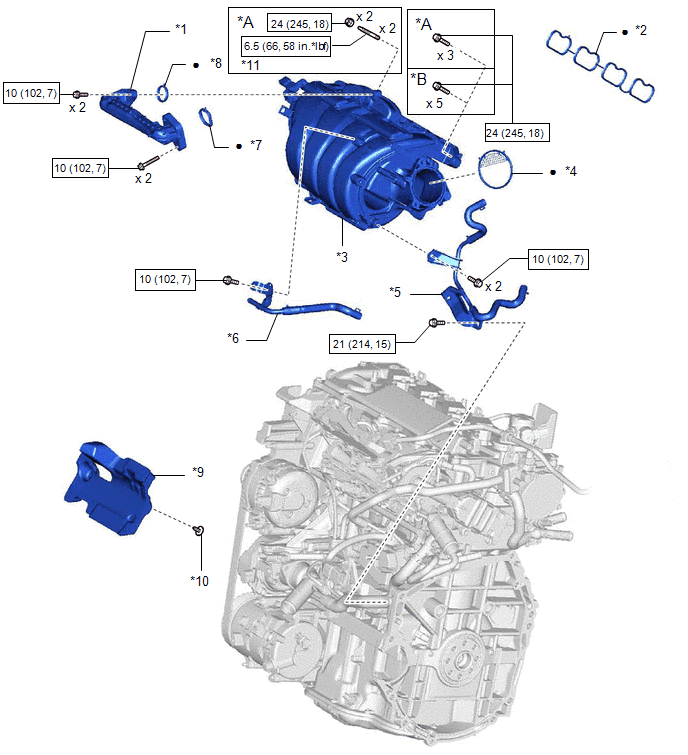

| Callout | Description | Callout | Description |
| *A | w/ Stud Bolt | *B | w/o Stud Bolt |
| *1 | NO. 1 EGR PIPE SUB-ASSEMBLY | *2 | NO. 1 INTAKE MANIFOLD TO HEAD GASKET |
| *3 | INTAKE MANIFOLD | *4 | THROTTLE BODY GASKET |
| *5 | NO. 2 WATER BY-PASS PIPE | *6 | NO. 3 WATER BY-PASS PIPE |
| *7 | EGR VALVE ADAPTER GASKET | *8 | EGR INLET GASKET |
| *9 | NO. 3 ENGINE COVER | *10 | CLIP |
| *11 | STUD BOLT | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

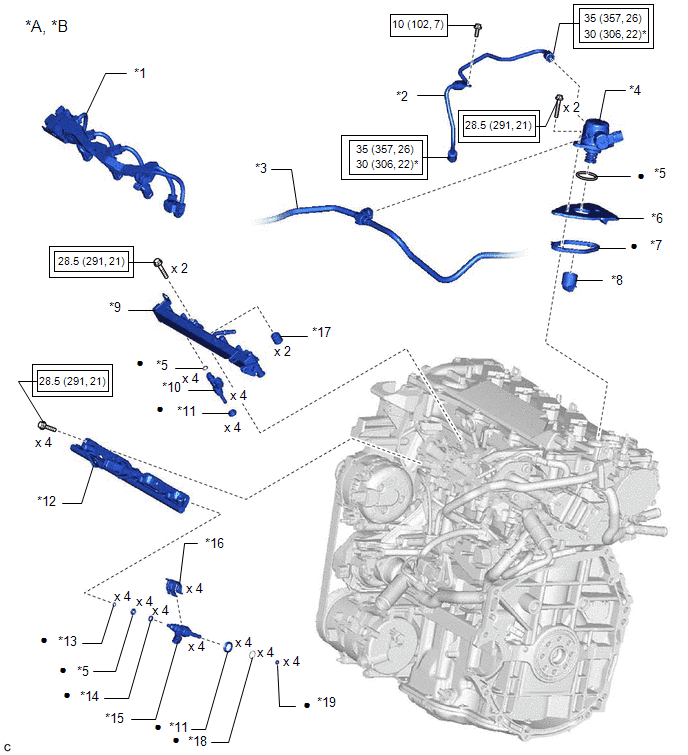

| Callout | Description | Callout | Description |
| *A | for 2WD | *B | for EGR Valve Bracket Connection Type |
| *1 | NO. 5 ENGINE WIRE | *2 | NO. 1 FUEL PIPE SUB-ASSEMBLY |
| *3 | FUEL TUBE SUB-ASSEMBLY | *4 | FUEL PUMP ASSEMBLY (for High Pressure) |
| *5 | O-RING | *6 | FUEL PUMP FLANGE |
| *7 | FUEL PUMP SPACER GASKET | *8 | FUEL PUMP LIFTER ASSEMBLY |
| *9 | FUEL DELIVERY PIPE WITH SENSOR SUB-ASSEMBLY | *10 | PORT FUEL INJECTOR ASSEMBLY |
| *11 | INJECTOR VIBRATION INSULATOR | *12 | FUEL DELIVERY PIPE |
| *13 | NO. 3 FUEL INJECTOR BACK-UP RING | *14 | NO. 1 FUEL INJECTOR BACK-UP RING |
| *15 | DIRECT FUEL INJECTOR ASSEMBLY | *16 | NOZZLE HOLDER CLAMP |
| *17 | NO. 1 DELIVERY PIPE SPACER | *18 | C-RING |
| *19 | FUEL INJECTOR SEAL | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| * | For use with a union nut wrench | • | Non-reusable part |

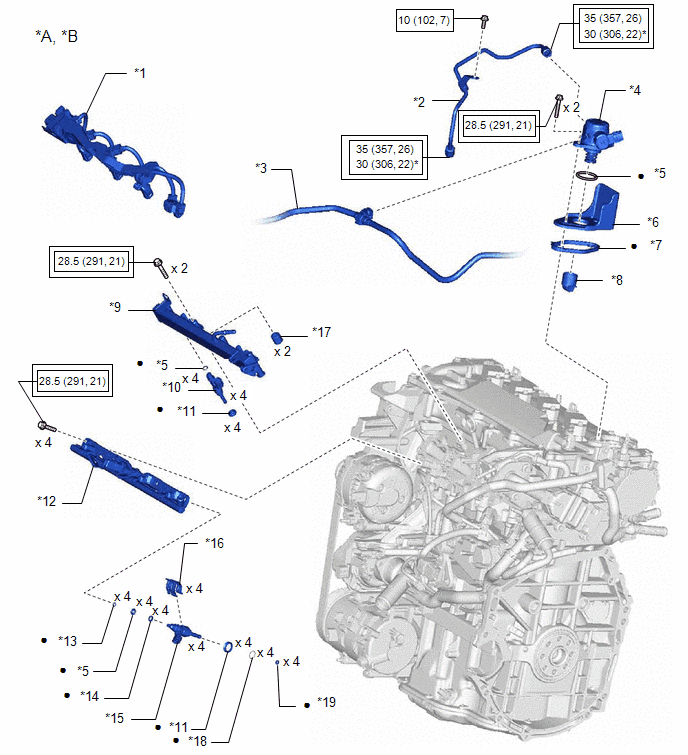

| Callout | Description | Callout | Description |
| *A | for 2WD | *B | for Cylinder Head Cover Sub-assembly Connection Type |
| *1 | NO. 5 ENGINE WIRE | *2 | NO. 1 FUEL PIPE SUB-ASSEMBLY |
| *3 | FUEL TUBE SUB-ASSEMBLY | *4 | FUEL PUMP ASSEMBLY (for High Pressure) |
| *5 | O-RING | *6 | FUEL PUMP FLANGE |
| *7 | FUEL PUMP SPACER GASKET | *8 | FUEL PUMP LIFTER ASSEMBLY |
| *9 | FUEL DELIVERY PIPE WITH SENSOR SUB-ASSEMBLY | *10 | PORT FUEL INJECTOR ASSEMBLY |
| *11 | INJECTOR VIBRATION INSULATOR | *12 | FUEL DELIVERY PIPE |
| *13 | NO. 3 FUEL INJECTOR BACK-UP RING | *14 | NO. 1 FUEL INJECTOR BACK-UP RING |
| *15 | DIRECT FUEL INJECTOR ASSEMBLY | *16 | NOZZLE HOLDER CLAMP |
| *17 | NO. 1 DELIVERY PIPE SPACER | *18 | C-RING |
| *19 | FUEL INJECTOR SEAL | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| * | For use with a union nut wrench | • | Non-reusable part |
| Callout | Description | Callout | Description |
| *A | for AWD | *B | for EGR Valve Bracket Connection Type |
| *1 | NO. 5 ENGINE WIRE | *2 | NO. 1 FUEL PIPE SUB-ASSEMBLY |
| *3 | FUEL TUBE SUB-ASSEMBLY | *4 | FUEL PUMP ASSEMBLY (for High Pressure) |
| *5 | O-RING | *6 | FUEL PUMP FLANGE |
| *7 | FUEL PUMP SPACER GASKET | *8 | FUEL PUMP LIFTER ASSEMBLY |
| *9 | FUEL DELIVERY PIPE WITH SENSOR SUB-ASSEMBLY | *10 | PORT FUEL INJECTOR ASSEMBLY |
| *11 | INJECTOR VIBRATION INSULATOR | *12 | FUEL DELIVERY PIPE |
| *13 | NO. 3 FUEL INJECTOR BACK-UP RING | *14 | NO. 1 FUEL INJECTOR BACK-UP RING |
| *15 | DIRECT FUEL INJECTOR ASSEMBLY | *16 | NOZZLE HOLDER CLAMP |
| *17 | NO. 1 DELIVERY PIPE SPACER | *18 | C-RING |
| *19 | FUEL INJECTOR SEAL | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| * | For use with a union nut wrench | • | Non-reusable part |
| Callout | Description | Callout | Description |
| *A | for AWD | *B | for Cylinder Head Cover Sub-assembly Connection Type |
| *1 | NO. 5 ENGINE WIRE | *2 | NO. 1 FUEL PIPE SUB-ASSEMBLY |
| *3 | FUEL TUBE SUB-ASSEMBLY | *4 | FUEL PUMP ASSEMBLY (for High Pressure) |
| *5 | O-RING | *6 | FUEL PUMP FLANGE |
| *7 | FUEL PUMP SPACER GASKET | *8 | FUEL PUMP LIFTER ASSEMBLY |
| *9 | FUEL DELIVERY PIPE WITH SENSOR SUB-ASSEMBLY | *10 | PORT FUEL INJECTOR ASSEMBLY |
| *11 | INJECTOR VIBRATION INSULATOR | *12 | FUEL DELIVERY PIPE |
| *13 | NO. 3 FUEL INJECTOR BACK-UP RING | *14 | NO. 1 FUEL INJECTOR BACK-UP RING |
| *15 | DIRECT FUEL INJECTOR ASSEMBLY | *16 | NOZZLE HOLDER CLAMP |
| *17 | NO. 1 DELIVERY PIPE SPACER | *18 | C-RING |
| *19 | FUEL INJECTOR SEAL | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| * | For use with a union nut wrench | • | Non-reusable part |

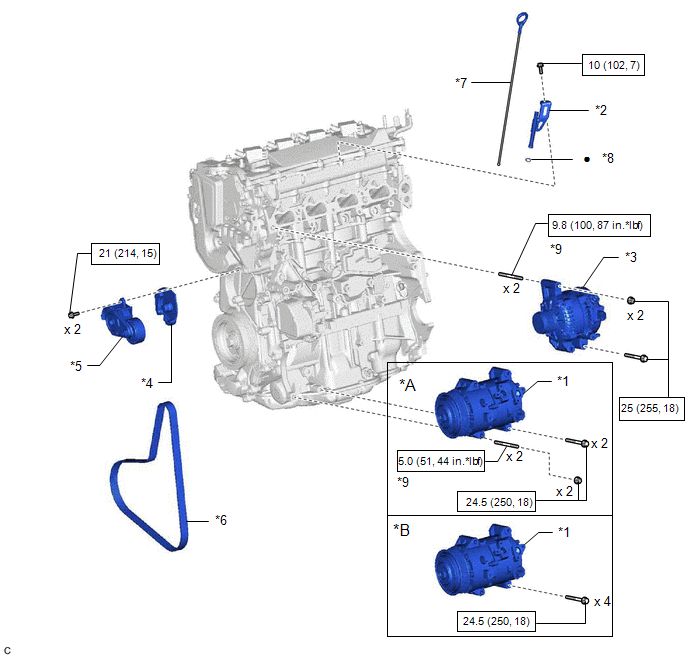

| Callout | Description | Callout | Description |
| *A | for Type A | *B | for Type B |
| *1 | COMPRESSOR ASSEMBLY WITH PULLEY | *2 | ENGINE OIL LEVEL DIPSTICK GUIDE |
| *3 | GENERATOR ASSEMBLY | *4 | NO. 2 TIMING CHAIN COVER INSULATOR |
| *5 | V-RIBBED BELT TENSIONER ASSEMBLY | *6 | V-RIBBED BELT |
| *7 | ENGINE OIL LEVEL DIPSTICK | *8 | O-RING |
| *9 | STUD BOLT | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

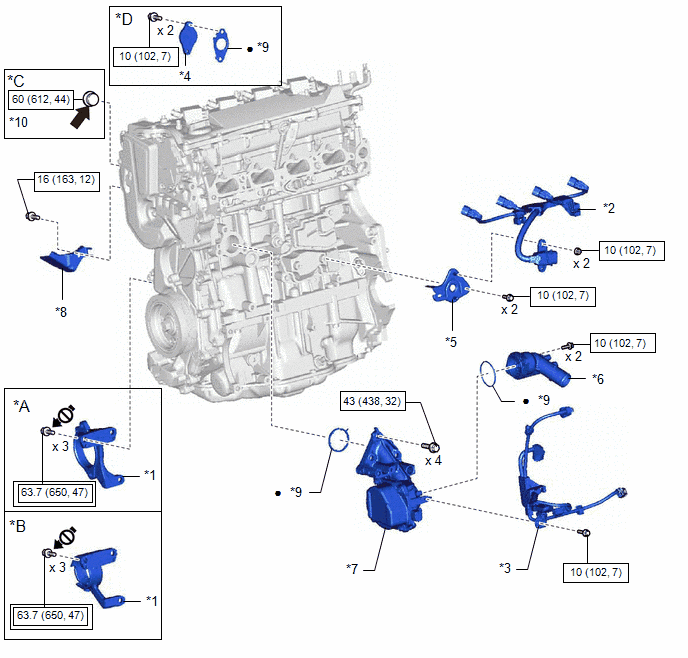

| Callout | Description | Callout | Description |
| *A | for 2WD | *B | for AWD |
| *C | w/ No. 3 Straight Screw Plug | *D | w/o No. 3 Straight Screw Plug |
| *1 | DRIVE SHAFT BEARING BRACKET | *2 | NO. 6 ENGINE WIRE |
| *3 | SENSOR WIRE | *4 | WATER SEAL PLATE |
| *5 | WIRE HARNESS CLAMP BRACKET | *6 | WATER INLET WITH THERMOSTAT SUB-ASSEMBLY |
| *7 | ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING) | *8 | NO. 3 EXHAUST MANIFOLD HEAT INSULATOR |
| *9 | GASKET | *10 | NO. 3 STRAIGHT SCREW PLUG |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | Adhesive 1324 | |
| Do not apply lubricants to the threaded parts | - | - |

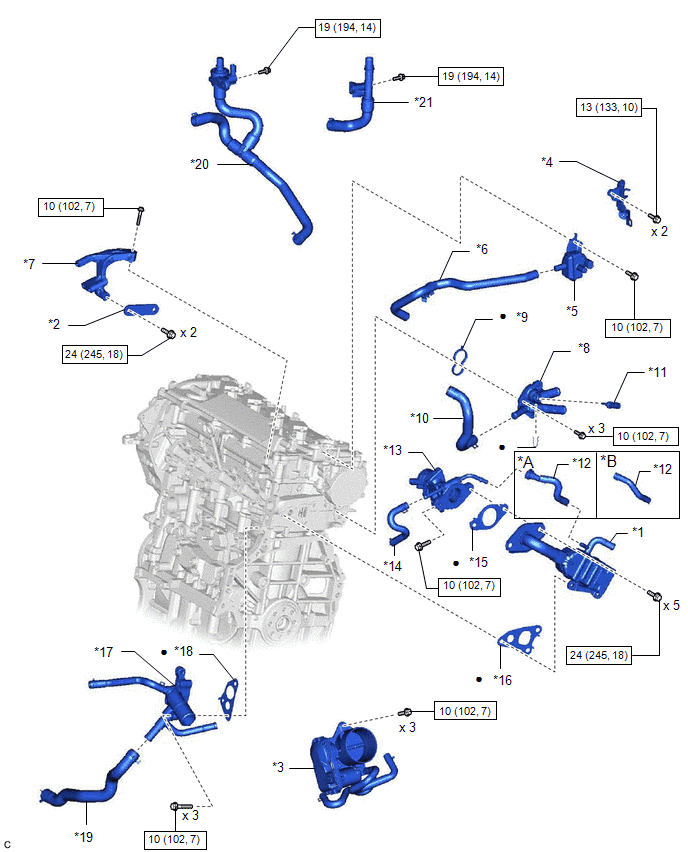

| Callout | Description | Callout | Description |
| *A | w/ Water Hose Connector | *B | w/o Water Hose Connector |
| *1 | EGR COOLER ASSEMBLY | *2 | NO. 1 EGR COOLER BRACKET |
| *3 | THROTTLE BODY WITH MOTOR ASSEMBLY | *4 | WATER HOSE CLAMP BRACKET |
| *5 | PURGE VALVE (PURGE VSV) | *6 | FUEL VAPOR FEED HOSE |
| *7 | EGR VALVE BRACKET | *8 | OUTLET WATER BY-PASS SUB-ASSEMBLY |
| *9 | OUTLET WATER PIPE GASKET | *10 | NO. 3 WATER BY-PASS HOSE |
| *11 | ENGINE COOLANT TEMPERATURE SENSOR | *12 | WATER HOSE |
| *13 | EGR VALVE ASSEMBLY | *14 | NO. 8 WATER BY-PASS HOSE |
| *15 | EGR VALVE GASKET | *16 | EGR COOLER GASKET |
| *17 | WATER OUTLET | *18 | WATER OUTLET GASKET |
| *19 | NO. 7 WATER BY-PASS HOSE | *20 | FLOW SHUTTING VALVE (WATER BY-PASS HOSE ASSEMBLY) |
| *21 | NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

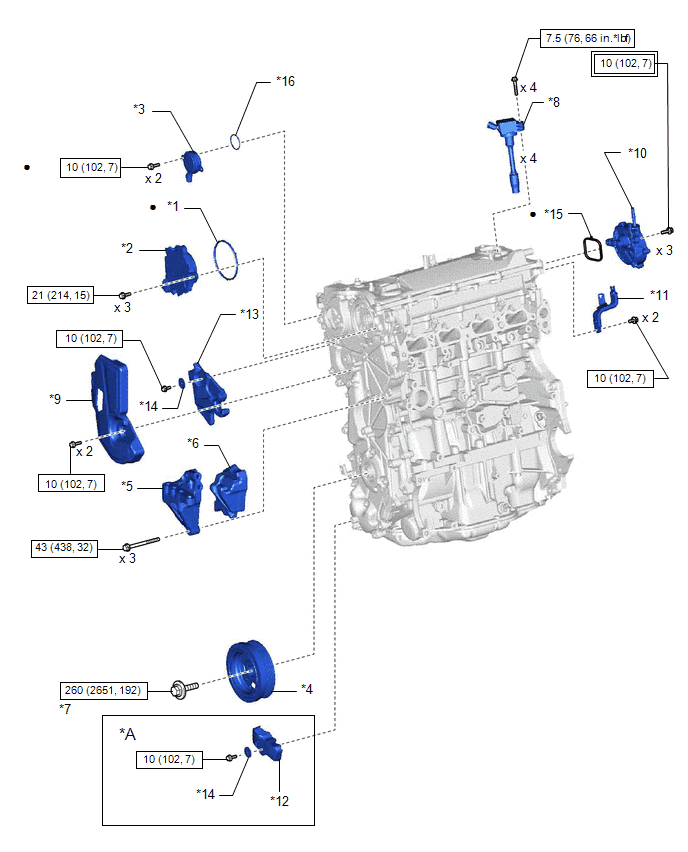

Fig 10: Engine Unit Replacement Components With Torque Specifications [03/2020 - 10/2020] (10 Of 14)
| Callout | Description | Callout | Description |
| *A | w/ Cover | - | - |
| *1 | CAM TIMING CONTROL MOTOR O-RING | *2 | CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY |
| *3 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY | *4 | CRANKSHAFT PULLEY ASSEMBLY |
| *5 | ENGINE MOUNTING BRACKET RH | *6 | ENGINE MOUNTING INSULATOR RH |
| *7 | CRANKSHAFT PULLEY BOLT | *8 | IGNITION COIL ASSEMBLY |
| *9 | NO. 2 ENGINE COVER | *10 | VACUUM PUMP ASSEMBLY |
| *11 | NO. 2 VACUUM SWITCHING VALVE BRACKET | *12 | NO. 3 TIMING CHAIN COVER |
| *13 | TIMING GEAR COVER INSULATOR | *14 | PLATE WASHER |
| *15 | NO. 1 VACUUM PUMP O-RING | *16 | O-RING |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | * | Precoated part |
Fig 11: Engine Unit Replacement Components With Torque Specifications [03/2020 - 10/2020] (11 Of 14)
| Callout | Description | Callout | Description |
| *1 | OIL FILLER CAP GASKET | *2 | OIL FILLER CAP SUB-ASSEMBLY |
| *3 | CAMSHAFT POSITION SENSOR (for Intake Side) | *4 | CYLINDER HEAD COVER SUB-ASSEMBLY |
| *5 | CAMSHAFT POSITION SENSOR (for Exhaust Side) | *6 | SPARK PLUG |
| *7 | SPARK PLUG TUBE GASKET | *8 | CAMSHAFT BEARING CAP OIL HOLE GASKET |
| *9 | CYLINDER HEAD COVER GASKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | - | - |

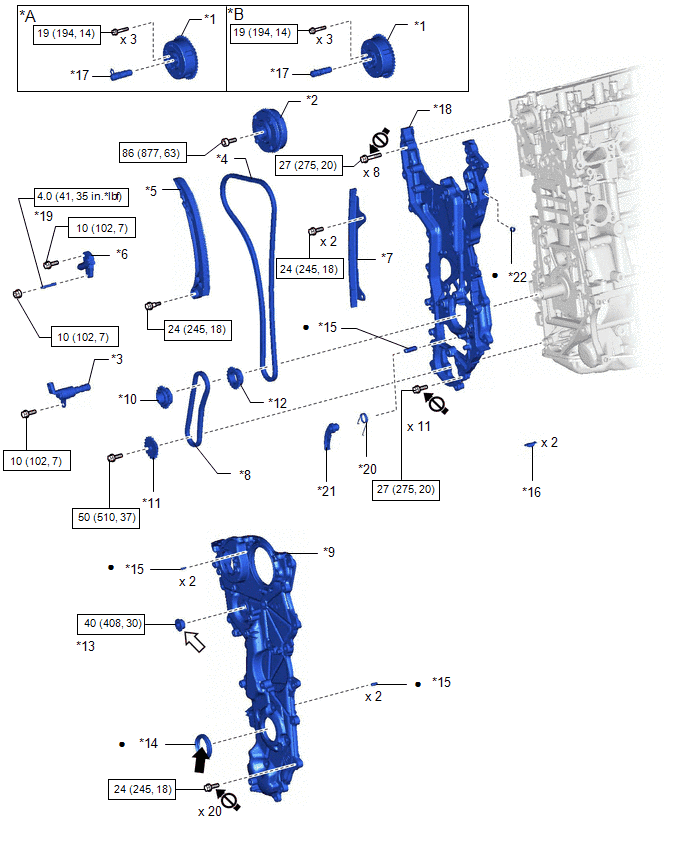

Fig 12: Engine Unit Replacement Components With Torque Specifications [03/2020 - 10/2020] (12 Of 14)
| Callout | Description | Callout | Description |
| *A | Type A | *B | Type B |
| *1 | CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY | *2 | CAMSHAFT TIMING GEAR ASSEMBLY |
| *3 | OIL PRESSURE CONTROL VALVE ASSEMBLY | *4 | CHAIN SUB-ASSEMBLY |
| *5 | CHAIN TENSIONER SLIPPER | *6 | NO. 1 CHAIN TENSIONER ASSEMBLY |
| *7 | NO. 1 CHAIN VIBRATION DAMPER | *8 | OIL PUMP DRIVE CHAIN SUB-ASSEMBLY |
| *9 | NO. 2 TIMING GEAR COVER ASSEMBLY | *10 | OIL PUMP DRIVE SPROCKET |
| *11 | OIL PUMP DRIVE SHAFT SPROCKET | *12 | CRANKSHAFT TIMING SPROCKET |
| *13 | STRAIGHT SCREW PLUG | *14 | TIMING CHAIN COVER OIL SEAL |
| *15 | STRAIGHT PIN | *16 | CRANKSHAFT TIMING GEAR KEY |
| *17 | CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY) | *18 | TIMING CHAIN COVER ASSEMBLY |
| *19 | STUD BOLT | *20 | CHAIN DAMPER SPRING |
| *21 | CHAIN TENSIONER PLATE | *22 | RING PIN |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| MP grease | Adhesive 1324 | ||
| * | Precoated part | Do not apply lubricants to the threaded parts |

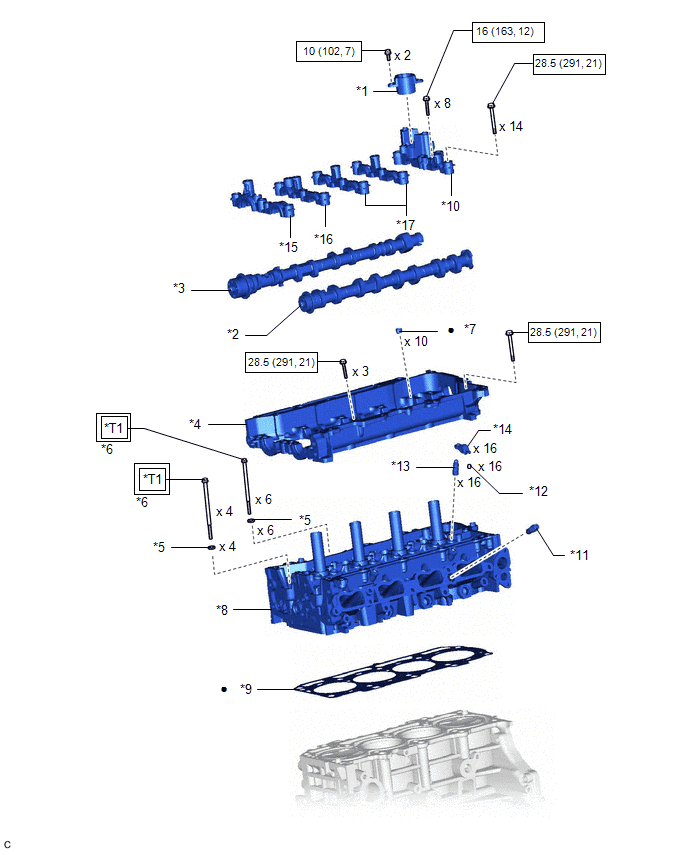

Fig 13: Engine Unit Replacement Components With Torque Specifications [03/2020 - 10/2020] (13 Of 14)
| Callout | Description | Callout | Description |
| *1 | FUEL PUMP LIFTER GUIDE | *2 | CAMSHAFT |
| *3 | NO. 2 CAMSHAFT | *4 | CAMSHAFT HOUSING SUB-ASSEMBLY |
| *5 | PLATE WASHER | *6 | CYLINDER HEAD SET BOLT |
| *7 | CAMSHAFT BEARING CAP SETTING RING PIN | *8 | CYLINDER HEAD SUB-ASSEMBLY |
| *9 | CYLINDER HEAD GASKET | *10 | NO. 4 CAMSHAFT BEARING CAP |
| *11 | PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) | *12 | VALVE STEM CAP |
| *13 | VALVE LASH ADJUSTER ASSEMBLY | *14 | NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY |
| *15 | NO. 1 CAMSHAFT BEARING CAP | *16 | NO. 2 CAMSHAFT BEARING CAP |
| *17 | NO. 3 CAMSHAFT BEARING CAP | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |
| *T1 | 1st: 90 (918, 66) 2nd: Turn 90° 3rd: Turn 90° |
- | - |

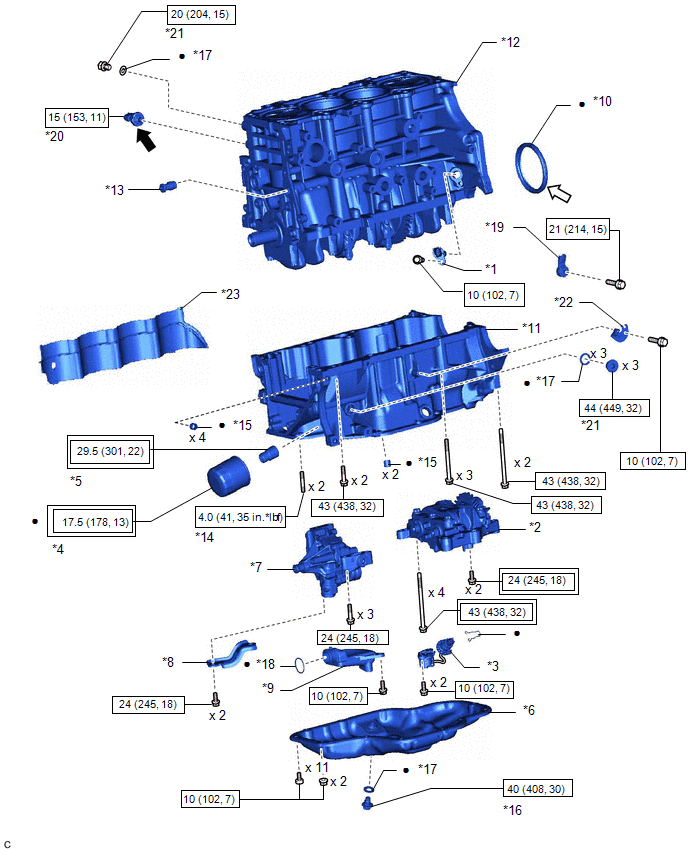

Fig 14: Engine Unit Replacement Components With Torque Specifications [03/2020 - 10/2020] (14 Of 14)
| Callout | Description | Callout | Description |
| *1 | CRANKSHAFT POSITION SENSOR | *2 | ENGINE BALANCER ASSEMBLY |
| *3 | ENGINE OIL LEVEL SENSOR | *4 | OIL FILTER SUB-ASSEMBLY |
| *5 | OIL FILTER UNION | *6 | NO. 2 OIL PAN SUB-ASSEMBLY |
| *7 | OIL PUMP ASSEMBLY | *8 | OIL PUMP BRACKET |
| *9 | OIL STRAINER SUB-ASSEMBLY | *10 | REAR ENGINE OIL SEAL |
| *11 | STIFFENING CRANKCASE ASSEMBLY | *12 | CYLINDER BLOCK SUB-ASSEMBLY |
| *13 | OIL NOZZLE VALVE SUB-ASSEMBLY | *14 | STUD BOLT |
| *15 | RING PIN | *16 | OIL PAN DRAIN PLUG |
| *17 | GASKET | *18 | OIL STRAINER GASKET |
| *19 | KNOCK CONTROL SENSOR | *20 | OIL PRESSURE AND TEMPERATURE SENSOR |
| *21 | STRAIGHT SCREW PLUG | *22 | WIRE HARNESS CLAMP BRACKET |
| *23 | CYLINDER BLOCK WATER JACKET SPACER | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | Adhesive 1344 | |
| MP grease | * | Precoated part |
