- REMOVE COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 1 [03/2017 - 06/2017]
, or refer to PROCEDURE - Step 1 [06/2017 - 10/2020]
- REMOVE INLET AIR CLEANER ASSEMBLY
Refer to PROCEDURE - Step 20 [03/2017 - 06/2017]
, or refer to PROCEDURE - Step 20 [06/2017 - 08/2018]
, or refer to PROCEDURE - Step 20 [08/2018 - 09/2019]
, or refer to PROCEDURE - Step 20 [09/2019 - 03/2020]
, or refer to PROCEDURE - Step 21 [03/2020 - 10/2020]
- REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY
Refer to REMOVAL [03/2017 - ]
- REMOVE EGR VALVE ASSEMBLY
Refer to REMOVAL [03/2017 - 10/2020]
- REMOVE E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)
Refer to PROCEDURE - Step 1
- DISCONNECT ENGINE WIRE
- Remove the bolt.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the wire harness clamp and disconnect the engine wire.
- REMOVE NO. 2 WATER BY-PASS PIPE
- Using an 8 mm socket wrench, remove the 2 bolts (A) and separate the No. 2 water by-pass pipe from the intake manifold.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the bolt (B) and No. 2 water by-pass pipe from the cylinder block sub-assembly.
- DISCONNECT NO. 3 WATER BY-PASS PIPE
- Slide the clip and disconnect the No. 5 water by-pass hose from the No. 3 water by-pass pipe.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Using an 8 mm socket wrench, remove the bolt and disconnect the No. 3 water by-pass pipe from the intake manifold.
- DISCONNECT NO. 2 FUEL VAPOR FEED HOSE
- Disconnect the No. 2 fuel vapor feed hose from the intake manifold.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE INTAKE MANIFOLD
- w/o Stud Bolt:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

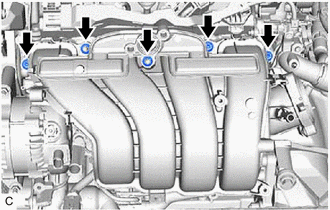

- Remove the 5 bolts and intake manifold from the cylinder head sub-assembly.
- w/ Stud Bolt:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 3 bolts and 2 nuts.
- Using an E8 "TORX" socket wrench, remove the 2 stud bolts and intake manifold from the cylinder head sub-assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE NO. 1 INTAKE MANIFOLD TO HEAD GASKET
- Remove the No. 1 intake manifold to head gasket from the intake manifold.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE NO. 1 ENGINE COVER
- Remove the clip and No. 1 engine cover.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE VACUUM HOSE
- Remove the vacuum hose from the intake manifold.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
