Removal [03/2017 - ]: Procedure

  1. REMOVE NO. 1 METER HOOD CLUSTER

    Refer to PROCEDURE - Step 1 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 1 [06/2017 - 09/2019] , or refer to PROCEDURE - Step 1 [09/2019 - 03/2020] , or refer to PROCEDURE - Step 1 [03/2020 - ]

  2. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 4 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 4 [06/2017 - 09/2019] , or refer to PROCEDURE - Step 4 [09/2019 - 03/2020] , or refer to PROCEDURE - Step 4 [03/2020 - ]

  3. REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY

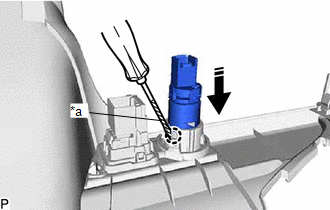

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the No. 1 power outlet socket assembly as shown in the illustration.
      GTY758507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
  4. REMOVE NO. 1 POWER OUTLET SOCKET COVER

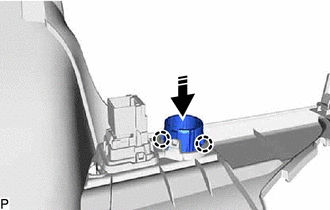

    1. Disengage the 2 claws and remove the No. 1 power outlet socket cover as shown in the illustration.
      GTY762084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
