Removal [06/2017 - 10/2020]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [06/2017 - 09/2019] , or refer to PRECAUTION [09/2019 - 03/2020] , or refer to PRECAUTION [03/2020 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 2 [08/2018 - 10/2020]

  3. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  4. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 20 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 20 [08/2018 - 09/2019] , or refer to PROCEDURE - Step 20 [09/2019 - 03/2020] , or refer to PROCEDURE - Step 21 [03/2020 - 10/2020]

  5. REMOVE E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)

    Refer to PROCEDURE - Step 1

  6. REMOVE V-RIBBED BELT

    Refer to REMOVAL [03/2017 - ]

  7. REMOVE GENERATOR ASSEMBLY

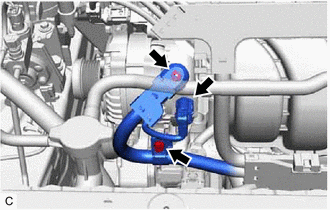

    1. Disconnect the generator assembly connector.
      GTY753703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Open the terminal cap.
    3. Remove the nut and disconnect the wire harness from terminal B.
    4. Remove the bolt and separate the wire harness clamp bracket from the generator assembly.

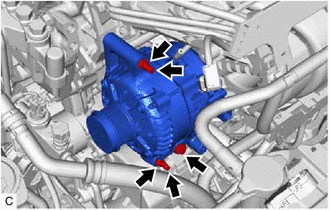

    5. Remove the 2 nuts and loosen the bolt.
      GTY771422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Using an E8 "TORX" socket wrench, remove the 2 stud bolts.
    7. Remove the bolt and generator assembly.
