Installation [03/2017 - ]: Procedure

  1. INSTALL GENERATOR ASSEMBLY

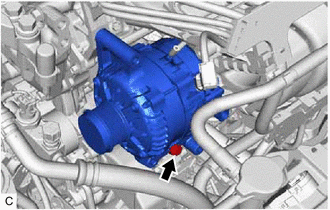

    1. Temporarily install the generator assembly with the bolt.
      GTY753699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using an E8 "TORX" socket wrench, install the 2 stud bolts.

      Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

    3. Install the generator assembly with the bolt and 2 nuts.

      Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

    4. Install the wire harness clamp bracket to the generator assembly with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    5. Connect the wire harness to terminal B with the nut.

      Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

    6. Close the terminal cap.
    7. Connect the generator assembly connector.
  2. INSTALL V-RIBBED BELT

    Refer to INSTALLATION [03/2017 - ]

  3. INSTALL E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)

    Refer to PROCEDURE - Step 1

  4. INSTALL INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 45 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 45 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 45 [08/2018 - 03/2020] , or refer to PROCEDURE - Step 49 [03/2020 - 10/2020] , or refer to PROCEDURE - Step 49 [10/2020 - ]

  5. INSTALL COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 2 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 2 [06/2017 - 10/2020] , or refer to PROCEDURE - Step 2 [10/2020 - ]

  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2 [03/2017 - 08/2018] , or refer to PROCEDURE - Step 2 [08/2018 - ]
