Removal [06/2017 - 10/2020]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [06/2017 - 09/2019] , or refer to PRECAUTION [09/2019 - 03/2020] , or refer to PRECAUTION [03/2020 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    For A25A-FKS: Refer to PROCEDURE - Step 2 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 2 [08/2018 - 10/2020]

    For 2GR-FKS: Refer to PROCEDURE - Step 2

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [06/2017 - 08/2018] , or refer to INITIALIZATION [08/2018 - 09/2019] , or refer to INITIALIZATION [09/2019 - 03/2020] , or refer to INITIALIZATION [03/2020 - 10/2020]

  3. DRAIN BRAKE FLUID
    NOTE:

    If brake fluid leaks onto any painted surface, immediately wash it off.

  4. REMOVE FRONT WHEEL RH

    Refer to PROCEDURE - Step 1

  5. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to REMOVAL [03/2017 - ]

  6. REMOVE FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY
    1. Disconnect the connector.

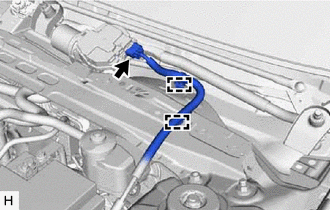

      GTY774188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clamps and separate the wire harness.
    3. Remove the 6 bolts, 4 nuts and front center upper suspension brace sub-assembly.

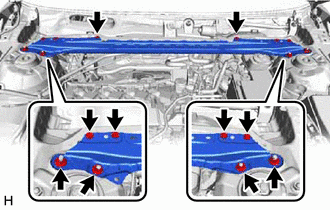

      GTY766262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE BRAKE ACTUATOR WITH BRACKET
    1. Release the lock lever and disconnect the connector from the brake actuator assembly.
      GTY742907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Release the lock lever
      Disconnect the connector
      NOTE:

      Be careful not to allow any brake fluid to enter the connector.

    2. Use tags or make a memo to identify the places to reconnect the brake lines.
      GTY745883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a From 1st Chamber of Brake Master Cylinder Sub-assembly
      *b From 2nd Chamber of Brake Master Cylinder Sub-assembly
      *c To Front Wheel Cylinder Assembly RH
      *d To Rear Wheel Cylinder Assembly LH
      *e To Rear Wheel Cylinder Assembly RH
      *f To Front Wheel Cylinder Assembly LH
    3. Using a union nut wrench, disconnect the 6 brake lines from the brake actuator assembly.

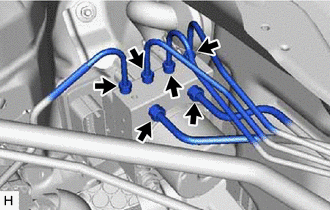

      GTY766266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not kink or damage the brake lines.
      • Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.
    4. Using a union nut wrench, disconnect the front No. 3 brake tube while holding the front flexible hose with a wrench.
      NOTE:
      • Do not kink or damage the front No. 3 brake tube.
      • Do not allow any foreign matter such as dirt or dust to enter the front No. 3 brake tube from the connecting parts.
      GTY766265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the clamp and separate the front No. 3 brake tube.
      GTY766256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not kink or damage the front No. 3 brake tube.

    6. Move aside the front No. 3 brake tube as shown in the illustration.
      GTY774367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not apply excessive force to the front No. 3 brake tube.

    7. Disengage the clamp and remove the brake tube clamp.
      GTY767070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Apply protective tape to the vehicle body as shown in the illustration.

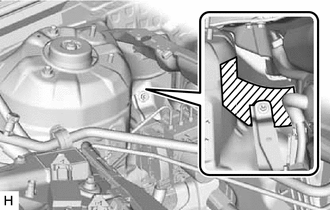

      GTY768727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    9. Remove the 2 bolts.
      GTY766361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Insert the tool from the bottom of the vehicle.

    10. Remove the nut and brake actuator with bracket.
      NOTE:
      • Do not kink or damage the brake lines.
      • Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.
      • Be careful not to allow any brake fluid to enter the connector.
      • Do not hold the brake actuator assembly by the connector.
      • Do not drop the brake actuator with bracket when carrying it.

      HINT:

      Remove the brake actuator with bracket while avoiding the brake lines.

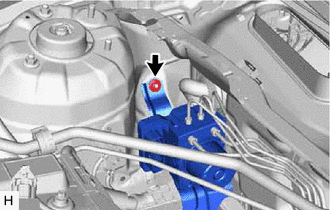

      GTY774210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE BRAKE ACTUATOR ASSEMBLY
    1. Loosen the 2 nuts.

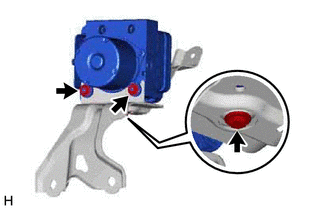

      GTY774186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and brake actuator assembly from the brake actuator bracket assembly.
      NOTE:
      • Do not hold the brake actuator assembly by the connector.
      • Do not drop the brake actuator assembly when carrying it.
  9. REMOVE NO. 2 BRAKE ACTUATOR CASE COLLAR
    1. Remove the No. 2 brake actuator case collar from the brake actuator bolt cushion.
      GTY766254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE BRAKE ACTUATOR BOLT CUSHION
    GTY766261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the brake actuator bolt cushion from the brake actuator bracket assembly.
