Installation [03/2017 - 06/2017]: Procedure

INSTALL NO. 1 PARKING BRAKE CABLE ASSEMBLY

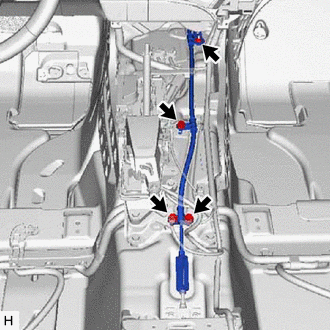

Install the No. 1 parking brake cable assembly with the 3 bolts and nut.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Bolt:

Torque: 15.5 N*m (158 kgf*cm, 11 ft.*lbf)

Nut:

Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

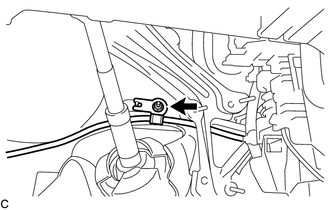

Install the nut.

Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

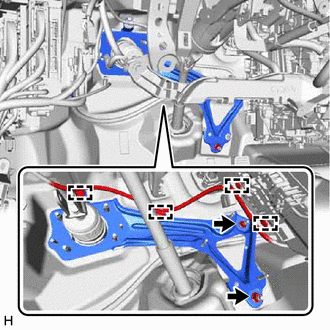

Connect the brake pedal support base to the vehicle body with the 2 nuts.

Torque: 12.7 N*m (130 kgf*cm, 9 ft.*lbf)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Engage the 4 clamps.

INSTALL BRAKE PEDAL SUPPORT ASSEMBLY
Refer to INSTALLATION [03/2017 - 06/2017]

CONNECT NO. 1 PARKING BRAKE CABLE ASSEMBLY

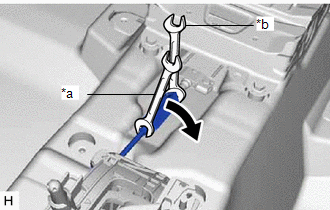

Connect the No. 1 parking brake cable assembly to the No. 1 parking brake pull rod sub-assembly as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Turn
*b	Hold

Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

INSTALL NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (w/ Smart Key System)
Refer to PROCEDURE - Step 1

INSTALL NO. 1 CONSOLE BOX DUCT (for Dual Type)

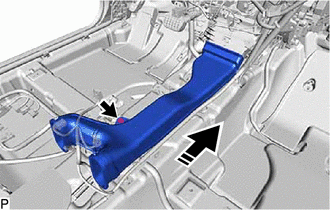

Install the No. 1 console box duct with the clip as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL REAR NO. 1 AIR DUCT
Refer to PROCEDURE - Step 16

INSTALL REAR NO. 2 AIR DUCT

Engage the 4 claws to install the rear No. 2 air duct as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

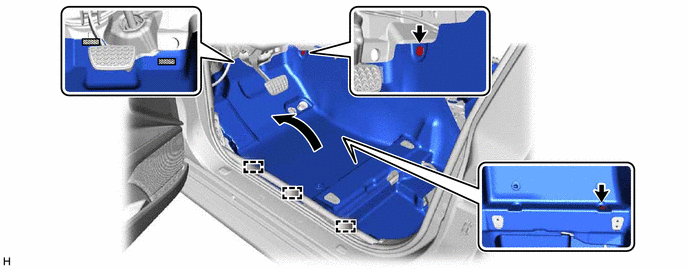

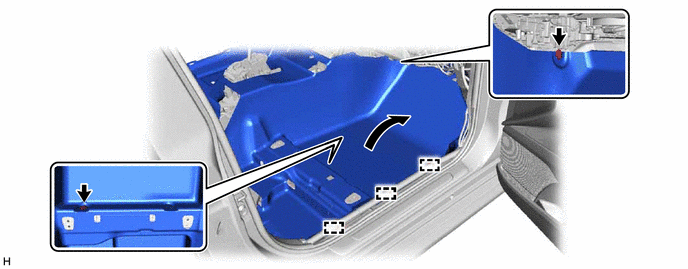

INSTALL FRONT FLOOR CARPET ASSEMBLY

For LH Side:

Install the front floor carpet assembly to its original position as shown in the illustration.

Fastener

Engage each fastener and the 3 guides to connect the front floor carpet assembly.
Install the 2 front floor carpet clips.

For RH Side:

Install the front floor carpet assembly to its original position as shown in the illustration.

Engage the 3 guides to connect the front floor carpet assembly.
Install the 2 front floor carpet clips.

INSTALL FRONT FLOOR CAUTION PLATE COVER
Refer to PROCEDURE - Step 18
INSTALL ACCELERATOR PEDAL
Refer to INSTALLATION [03/2017 - ]
INSTALL LOWER CENTER PILLAR GARNISH LH
Refer to PROCEDURE - Step 22
INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 1
INSTALL REAR DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 26
INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 1
INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 11
INSTALL LOWER CENTER PILLAR GARNISH RH
HINT:

Use the same procedure as for the LH side.
INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH
HINT:

Use the same procedure as for the LH side.
INSTALL REAR DOOR SCUFF PLATE RH
HINT:

Use the same procedure as for the LH side.
INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
HINT:

Use the same procedure as for the LH side.
INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.
INSTALL FRONT DOOR SCUFF PLATE RH
HINT:

Use the same procedure as for the LH side.
INSTALL REAR SEAT CUSHION LOCK HOOK
Refer to PROCEDURE - Step 7
INSTALL REAR SEAT CUSHION ASSEMBLY
Refer to PROCEDURE - Step 8
CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
Refer to PROCEDURE - Step 9
INSTALL CONSOLE BOX ASSEMBLY
Refer to INSTALLATION [03/2017 - 06/2017]
INSTALL FRONT SEAT ASSEMBLY LH
Refer to INSTALLATION [03/2017 - 09/2019]
INSTALL FRONT SEAT ASSEMBLY RH
Refer to INSTALLATION [03/2017 - 09/2019]
INSTALL PARKING BRAKE PEDAL ASSEMBLY
Refer to INSTALLATION [03/2017 - ]
