Removal [06/2017 - ]: Procedure

  1. PRECAUTION

    Refer to PRECAUTION [06/2017 - ]

  2. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to REMOVAL [06/2017 - 09/2019] , or refer to REMOVAL [09/2019 - 03/2020] , or refer to REMOVAL [03/2020 - ]

  3. REMOVE ELECTRIC PARKING BRAKE SWITCH ASSEMBLY

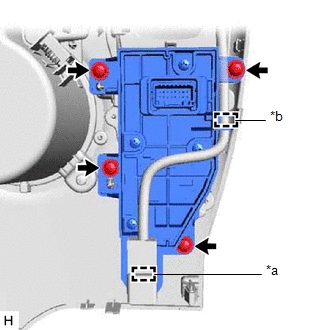

    1. GTY747131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide

      Disengage the clamp and guide.

    2. Remove the 4 screws and electric parking brake switch assembly.
