Removal [03/2017 - ]: Procedure

  1. REMOVE REAR WHEEL

    Refer to PROCEDURE - Step 1 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 1 [06/2017 - ]

  2. SEPARATE REAR FLEXIBLE HOSE

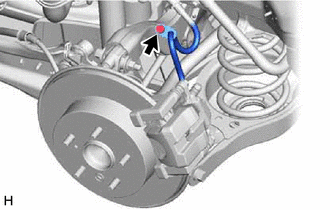

    1. Remove the bolt and separate the rear flexible hose from the rear flexible hose bracket.
      GTY742716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR DISC BRAKE PAD
    WARNING:
    • Be careful not to get pinched by the rear disc brake cylinder assembly or other parts when removing the rear disc brake pads.
    • After lifting up the rear disc brake cylinder assembly, secure it in place before performing any work on it.
      GTY742694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • The rear disc brake cylinder assembly could fall, pinching hands or fingers and causing injury.

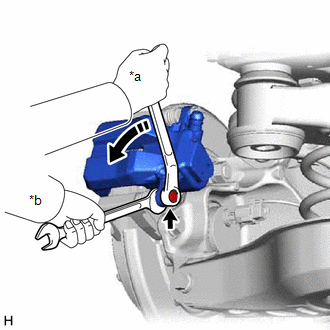

    1. Hold the rear disc brake cylinder slide pin (lower side) and remove the bolt.
      GTY762081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Turn
      *b Hold
    2. Pull the rear disc brake cylinder assembly upward.

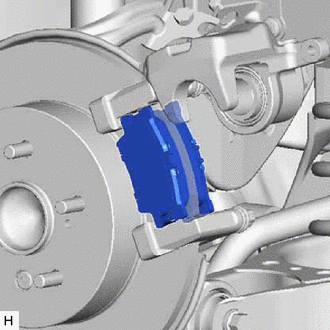

    3. Remove the 2 rear disc brake pads from the rear disc brake cylinder mounting.
      GTY742695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR DISC BRAKE ANTI-SQUEAL SHIM KIT
    1. Remove the rear No. 1 disc brake anti-squeal shim from each rear disc brake pad.
    2. Using a screwdriver, remove the rear disc brake pad wear indicator plate from each rear disc brake pad.
      GTY749406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
