Disassembly [08/2021 - ]: Procedure

1. Remove the No. 2 roof silencer.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the No. 4 roof silencer.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 6

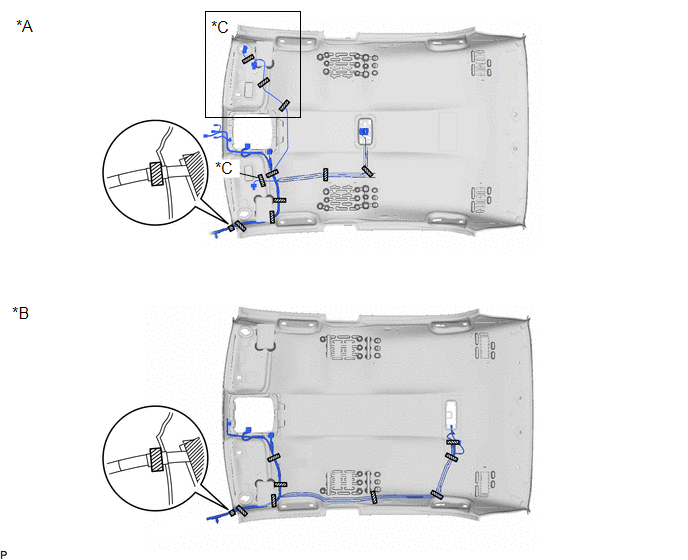

1. Remove the adhesive tape from the roof headlining assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	w/ Room Light Assembly	*B	w/ Spot Light Assembly
   *C	w/ Vanity Light	-	-
   	Adhesive Tape	-	-

2. w/ Vanity Light:

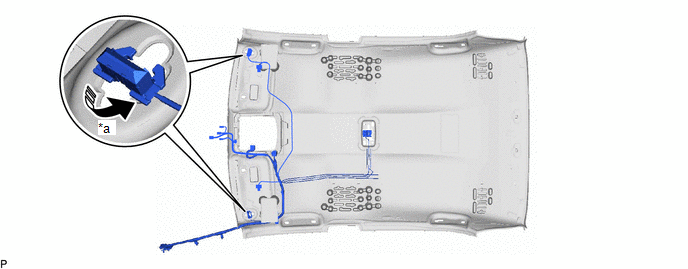

   1. Turn the 2 visor connectors counterclockwise approximately 90° and remove them from the roof headlining assembly.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	90°	-	-
      	Rotation Direction	-	-

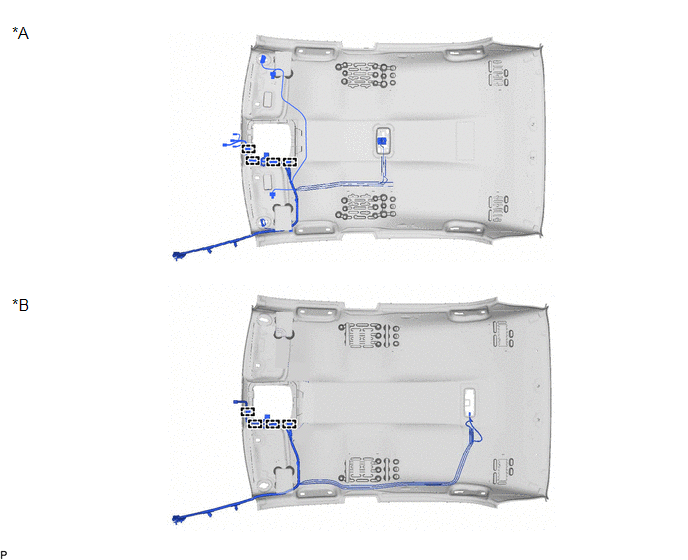

3. Disengage 4 clamps and remove the No. 1 roof wire from the roof headlining assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A

   w/ Room Light Assembly

   *B

   w/ Spot Light Assembly

1. Remove the adhesive tape from the roof headlining assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	for Moon Roof	*B	for Panoramic Moon Roof
   	Adhesive Tape	-	-

2. Turn the 2 visor connectors counterclockwise approximately 90° and remove them from the roof headlining assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	for Moon Roof	*B	for Panoramic Moon Roof
   *a	90°	-	-
   	Rotation Direction	-	-

3. Disengage each clamp and remove the No. 1 roof wire from the roof headlining assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A

   for Moon Roof

   *B

   for Panoramic Moon Roof
