Inspection [06/2017 - ]: Procedure

  1. INSPECT FRONT SEATBACK HEATER ASSEMBLY LH
    1. Measure the resistance according to the value(s) in the table below.

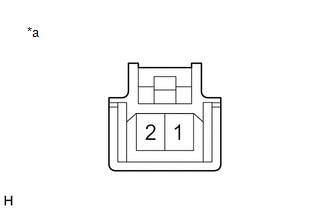

      GTY757198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Front Seatback Heater Assembly LH)

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 2 Seat heater temperature 23°C (73°F) 4.2 to 5.2 Ω

      If the result is not as specified, replace the front seatback heater assembly LH.

  2. INSPECT FRONT SEATBACK HEATER ASSEMBLY RH
    1. Measure the resistance according to the value(s) in the table below.
      GTY757198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Front Seatback Heater Assembly RH)

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 2 Seat heater temperature 23°C (73°F) 4.2 to 5.2 Ω

      If the result is not as specified, replace the front seatback heater assembly RH.
