Inspection [03/2017 - 09/2019]: Procedure

  1. INSPECT FRONT SEAT ADJUSTER ASSEMBLY LH
    1. Check the operation of the slide motor.

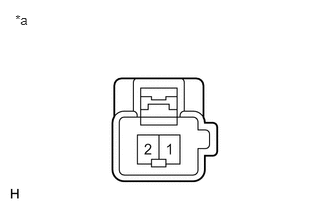

      GTY587096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Slide Motor (Front Seat Adjuster Assembly LH)
      1. Check that the seat cushion moves smoothly when the battery is connected to the slide motor connector terminals.

        OK

        Battery Connection Operational Direction
        Battery positive (+) → Terminal 2
        Battery negative (-) → Terminal 1        		 Seat cushion moves forward
        Battery positive (+) → Terminal 1
        Battery negative (-) → Terminal 2        		 Seat cushion moves backward

        If the result is not as specified, replace the front seat adjuster assembly LH.

  2. INSPECT POWER SEAT TILT MOTOR ASSEMBLY LH
    1. GTY587096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Power Seat Tilt Motor Assembly LH)

      Check the operation of the power seat tilt motor assembly LH.

      1. Check that the seat cushion moves smoothly when the battery is connected to the power seat tilt motor assembly LH connector terminals.

        OK

        Battery Connection Operational Direction
        Battery positive (+) → Terminal 1
        Battery negative (-) → Terminal 2        		 Seat cushion moves upward
        Battery positive (+) → Terminal 2
        Battery negative (-) → Terminal 1        		 Seat cushion moves downward

        If the result is not as specified, replace the power seat tilt motor assembly LH.

  3. INSPECT POWER SEAT LIFTER MOTOR ASSEMBLY LH
    1. Check the operation of the power seat lifter motor assembly LH.
      GTY587096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Power Seat Lifter Motor Assembly LH)
      1. Check that the seat cushion moves smoothly when the battery is connected to the power seat lifter motor assembly LH connector terminals.

        OK

        Battery Connection Operational Direction
        Battery positive (+) → Terminal 1
        Battery negative (-) → Terminal 2        		 Seat cushion moves upward
        Battery positive (+) → Terminal 2
        Battery negative (-) → Terminal 1        		 Seat cushion moves downward

        If the result is not as specified, replace the power seat lifter motor assembly LH.

  4. INSPECT FRONT SEATBACK FRAME SUB-ASSEMBLY LH

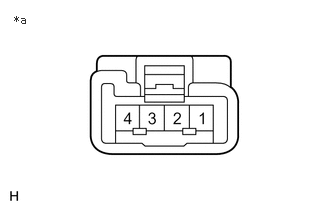

    1. GTY597010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Reclining Motor (Front Seatback Frame Sub-assembly LH))

      Check the operation of the reclining motor.

      1. Check that the seatback moves smoothly when the battery is connected to the reclining motor connector terminals.

        OK

        Battery Connection Operational Direction
        Battery positive (+) → Terminal 1
        Battery negative (-) → Terminal 4        		 Seatback moves forward
        Battery positive (+) → Terminal 4
        Battery negative (-) → Terminal 1        		 Seatback moves backward

        If the result is not as specified, replace the front seatback frame sub-assembly LH.
