Interior Light Circuit [06/2017 - 09/2019]: Wiring Diagram

  1. for TMC Made

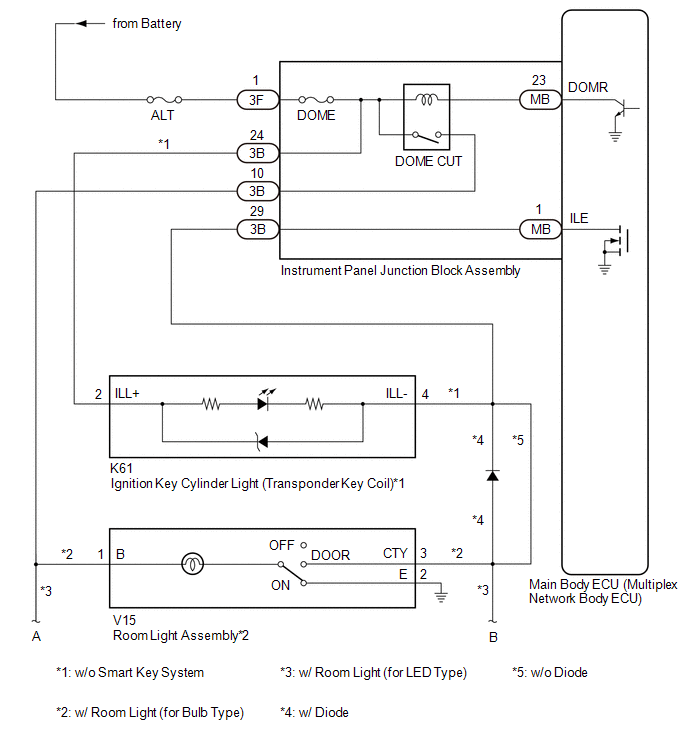

    GTY914579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY746937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for TMMK Made
    GTY943028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

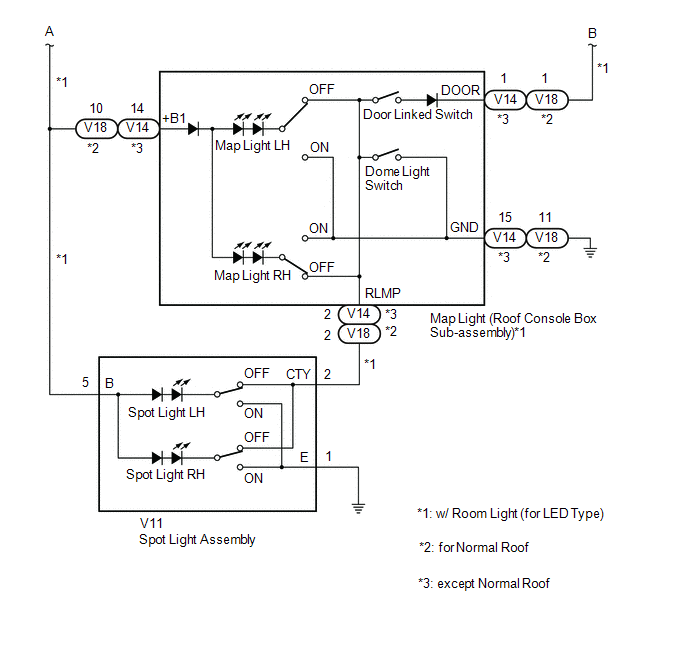

    GTY743073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
