Removal [10/2020 - ]: Procedure

  1. PRECAUTION
    NOTE:
    • When replacing the radio and display receiver assembly or navigation ECU, always replace it with a new one. If a radio and display receiver assembly or navigation ECU which was installed to another vehicle is used, the following may occur:
      • A communication malfunction DTC may be stored.
      • The radio and display receiver assembly or navigation ECU may not operate normally.
    • After replacing the navigation ECU, if "New software is not compatible with the system. Contact your dealer." is displayed on the multi-display, update the software of the radio and display receiver assembly.

    Refer to PRECAUTION [10/2020 - ]

  2. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

    Refer to REMOVAL [10/2020 - ]

  3. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 7 Inch Display)

    Refer to PROCEDURE - Step 25

  4. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 9 Inch Display)

    Refer to PROCEDURE - Step 26

  5. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 27

  6. REMOVE INSTRUMENT PANEL FINISH PLATE GARNISH

    Refer to PROCEDURE - Step 3

  7. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 4

  8. REMOVE SHIFT LOCK RELEASE BUTTON COVER

    For UB80E:

    Refer to PROCEDURE - Step 2

    For UA80E:

    Refer to PROCEDURE - Step 2

    For UB80F:

    Refer to PROCEDURE - Step 2

  9. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    For UB80E:

    Refer to PROCEDURE - Step 1

    For UA80E:

    Refer to PROCEDURE - Step 1

    For UB80F:

    Refer to PROCEDURE - Step 1

  10. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  11. REMOVE NAVIGATION ECU WITH BRACKET

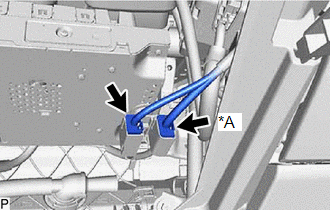

    1. Disconnect each connector.
      GTY991201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Manual (SOS) Switch

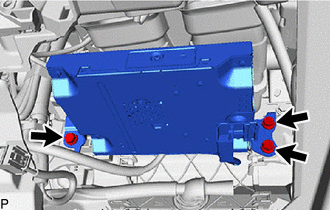

    2. Remove the 3 bolts.
      GTY990793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

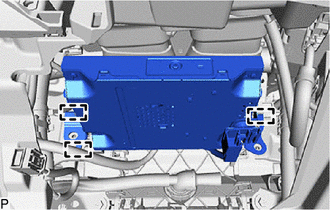

    3. Disengage the 3 guides.
      GTY990350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

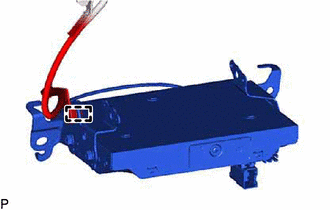

    4. Disengage the clamp.
      GTY990428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect each connector and remove the navigation ECU with bracket.
  12. REMOVE ANTENNA CORD SUB-ASSEMBLY
    1. w/o Manual (SOS) Switch:

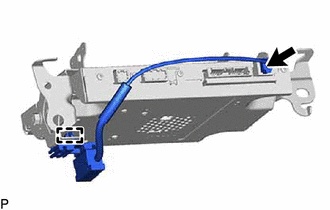

      1. Disconnect the connector.
        GTY990454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the clamp to remove the antenna cord sub-assembly.
    2. w/ Manual (SOS) Switch:
      1. Disconnect the 4 connectors.
        GTY990463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the clamp to remove the antenna cord sub-assembly.
  13. REMOVE NO. 2 TELEPHONE BRACKET
    1. w/o Manual (SOS) Switch:

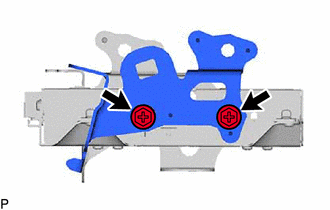

      1. Remove the 2 screws and No. 2 telephone bracket.
        GTY990453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Manual (SOS) Switch:
      1. Remove the 3 screws and No. 2 telephone bracket.
        GTY990461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 1 TELEPHONE BRACKET
    1. w/o Manual (SOS) Switch:

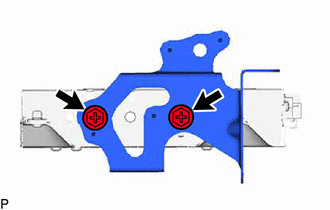

      1. Remove the 2 screws and No. 1 telephone bracket.
        GTY990464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Manual (SOS) Switch:
      1. Remove the 3 screws and No. 1 telephone bracket.
        GTY990458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE DCM (TELEMATICS TRANSCEIVER) (w/ Manual (SOS) Switch)
  16. REMOVE NAVIGATION ECU
