Removal [10/2020 - ]: Procedure

  1. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

    Refer to REMOVAL [10/2020 - ]

  2. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 7 Inch Display)

    Refer to PROCEDURE - Step 25

  3. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 9 Inch Display)

    Refer to PROCEDURE - Step 26

  4. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 27

  5. REMOVE INSTRUMENT PANEL FINISH PLATE GARNISH

    Refer to PROCEDURE - Step 3

  6. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 4

  7. REMOVE SHIFT LOCK RELEASE BUTTON COVER

    for UB80E:

    Refer to PROCEDURE - Step 2

    for UA80E:

    Refer to PROCEDURE - Step 2

    for UB80F:

    Refer to PROCEDURE - Step 2

  8. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    for UB80E:

    Refer to PROCEDURE - Step 1

    for UA80E:

    Refer to PROCEDURE - Step 1

    for UB80F:

    Refer to PROCEDURE - Step 1

  9. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  10. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET

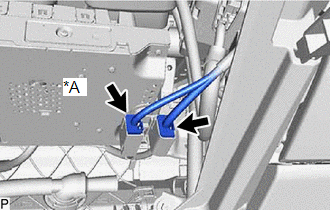

    1. Disconnect each connector.
      GTY990425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Navigation System

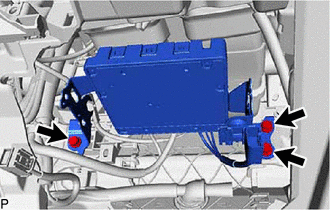

    2. Remove the 3 bolts.
      GTY990395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

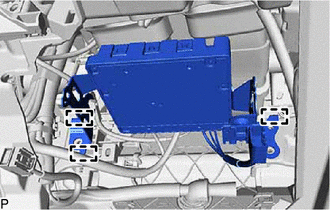

    3. Disengage the 3 guides.
      GTY991049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

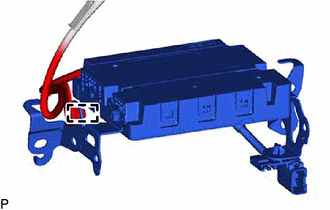

    4. Disengage the clamp.
      GTY991048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect each connector and remove the DCM (telematics transceiver) with bracket.
  11. REMOVE ANTENNA CORD SUB-ASSEMBLY
    1. w/o Navigation System:

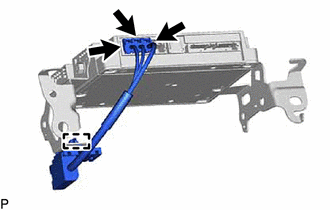

      1. Disconnect the 3 connectors.
        GTY991044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the clamp to remove the antenna cord sub-assembly.

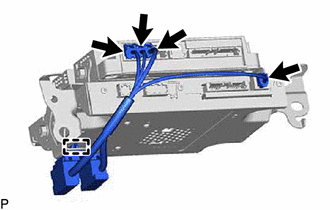

    2. w/ Navigation System:
      1. Disconnect the 4 connectors.
        GTY990463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the clamp to remove the antenna cord sub-assembly.
  12. REMOVE NO. 2 TELEPHONE BRACKET

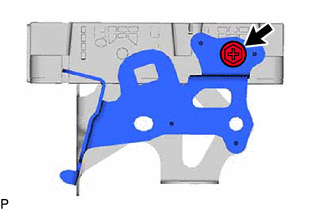

    1. w/o Navigation System:
      1. Remove the screw and No. 2 telephone bracket.
        GTY991059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Navigation System:

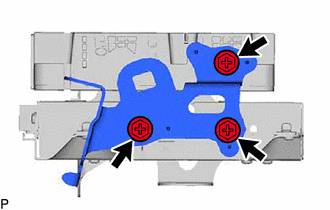

      1. Remove the 3 screws and No. 2 telephone bracket.
        GTY990461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE NO. 1 TELEPHONE BRACKET

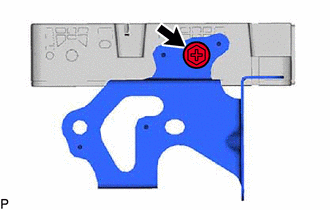

    1. w/o Navigation System:
      1. Remove the screw and No. 1 telephone bracket.
        GTY991057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Navigation System:

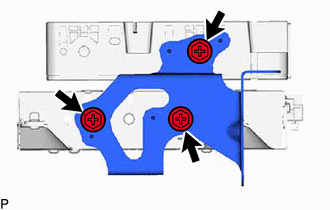

      1. Remove the 3 screws and No. 1 telephone bracket.
        GTY990458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NAVIGATION ECU (w/ Navigation System)
  15. REMOVE DCM (TELEMATICS TRANSCEIVER)
