Removal [09/2019 - 10/2020]: Procedure

  1. REMOVE NO. 1 METER HOOD CLUSTER

    Refer to PROCEDURE - Step 1 [09/2019 - 03/2020] , or refer to PROCEDURE - Step 1 [03/2020 - ]

  2. REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2 [09/2019 - 03/2020] , or refer to PROCEDURE - Step 2 [03/2020 - ]

  3. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 4 [09/2019 - 03/2020] , or refer to PROCEDURE - Step 4 [03/2020 - ]

  4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 22

  5. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 23

  6. REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for 7 Inch Display)

    Refer to PROCEDURE - Step 4

  7. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 7 Inch Display)

    Refer to PROCEDURE - Step 8

  8. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 8 Inch Display)

    Refer to PROCEDURE - Step 9

  9. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET

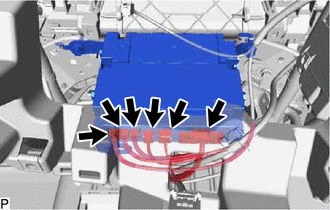

    1. Disconnect the 6 connectors.
      GTY872879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

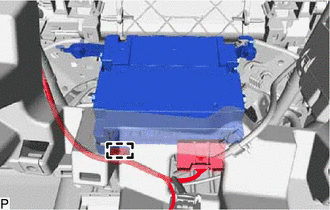

    2. Disengage the clamp.
      GTY933813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

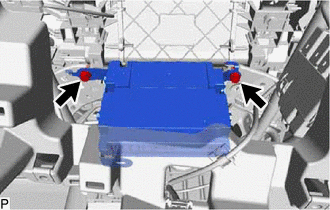

    3. Remove the 2 bolts.
      GTY872883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

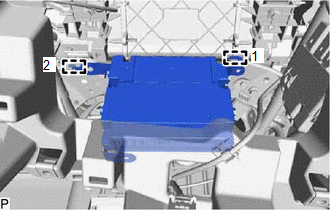

    4. Disengage the 2 guides in the order shown in the illustration to remove the DCM (telematics transceiver) with bracket.
      GTY901656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 1 TELEPHONE BRACKET
    1. GTY872881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 screws and No. 1 telephone bracket.

  11. REMOVE NO. 2 TELEPHONE BRACKET

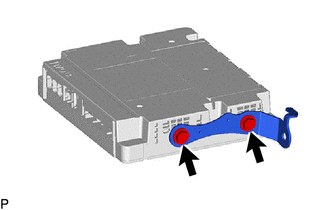

    1. GTY872896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 screws and No. 2 telephone bracket.

  12. REMOVE DCM (TELEMATICS TRANSCEIVER)
