Radio Receiver Assembly Communication Stop Mode [03/2017 - ]: Procedure

1. Disconnect the cable from the negative (-) battery terminal.
2. Disconnect the K2 radio and display receiver assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K2-13 (CANH) - K2-14 (CANL)	Cable disconnected from negative (-) battery terminal	54 to 69 Ω

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Radio and Display Receiver Assembly)

   Result

   Result
   OK
   NG

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY)

Result:

OK

See step  2

1. Disconnect the K3 radio and display receiver assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

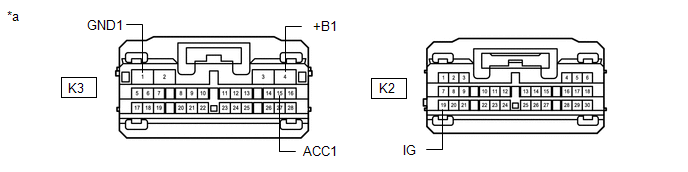

   Front view of wire harness connector (to Radio and Display Receiver Assembly)

   -

   -

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K3-1 (GND1) - Body ground	Cable disconnected from negative (-) battery terminal	Below 1 Ω

3. Reconnect the cable to the negative (-) battery terminal.
4. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   K2-19 (IG) - Body ground	Ignition switch ON	11 to 14 V
   K3-4 (+B1) - Body ground	Always	11 to 14 V
   K3-15 (ACC1) - Body ground	Ignition switch ACC	11 to 14 V

   Result

   Result
   OK
   NG

Result:

OK

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY. Refer to  REMOVAL [03/2017 - 06/2017]  , or refer to  REMOVAL [06/2017 - 10/2020]  , or refer to  REMOVAL [10/2020 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
