Removal [10/2014 - ]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY RH

    HINT:

    Use the same procedure for the RH side and LH side (Refer to REMOVAL [10/2014 - ] ).

  2. REMOVE OCCUPANT DETECTION ECU

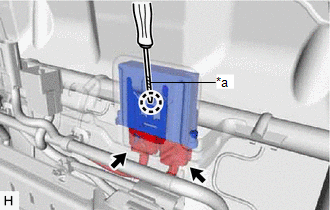

    1. Disconnect the 2 connectors.
      GTY573172Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    2. Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the occupant detection ECU.
      TEXT IN ILLUSTRATION

      *a Protective Tape
