Components [10/2014 - ]: Illustration

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (1 Of 3)
GTY599342Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

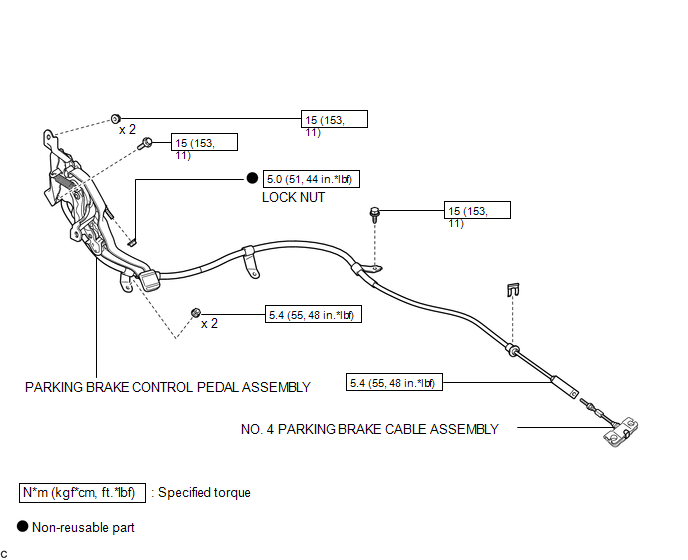

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (2 Of 3)
GTY558101Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

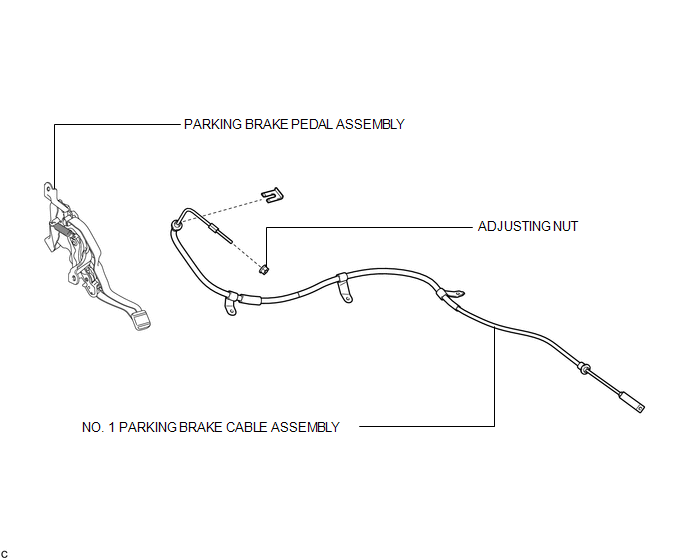

GTY610139Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

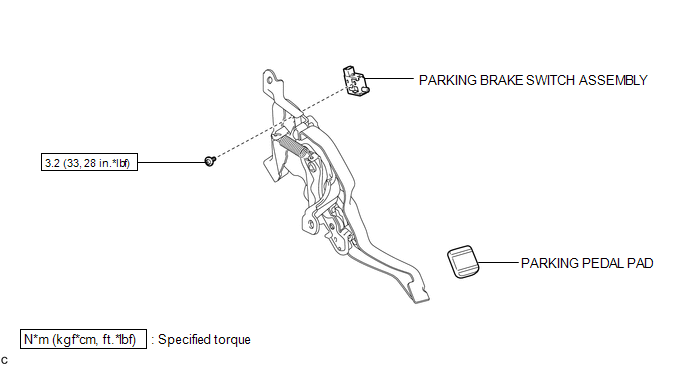

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (3 Of 3)
GTY588875Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
