Removal [10/2014 - ]: Procedure

  1. REMOVE PARKING BRAKE CONTROL PEDAL ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  2. REMOVE NO. 1 PARKING BRAKE CABLE ASSEMBLY

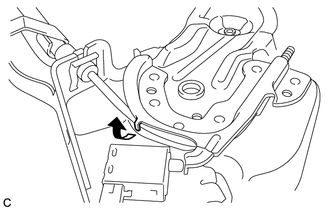

    1. Pull up the parking brake pedal claw.
      GTY316223Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      NOTE:

      Do not damage the No. 1 parking brake cable assembly.

    2. Remove the adjusting nut.
      GTY316222Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    3. Remove the clip from the No. 1 parking brake cable assembly.
      GTY316224Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    4. Remove the No. 1 parking brake cable assembly from the parking brake pedal assembly.
  3. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 8 Refer to PROCEDURE - Step 8

  4. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 6 Refer to PROCEDURE - Step 6

  5. REMOVE LAP BELT OUTER ANCHOR COVER (for LH Side)

    Refer to PROCEDURE - Step 7 Refer to PROCEDURE - Step 7

  6. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 8 Refer to PROCEDURE - Step 8

  7. REMOVE CENTER PILLAR LOWER GARNISH LH

    Refer to PROCEDURE - Step 12 Refer to PROCEDURE - Step 12

  8. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  9. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

  10. REMOVE LAP BELT OUTER ANCHOR COVER (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  11. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  12. REMOVE CENTER PILLAR LOWER GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  13. REMOVE FRONT SEAT ASSEMBLY LH

    (Refer to REMOVAL [10/2014 - ] )

  14. REMOVE FRONT SEAT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  15. REMOVE AUDIO AMPLIFIER COVER (w/ Front Center Speaker)

    Refer to PROCEDURE - Step 2

  16. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET (w/ Front Center Speaker)

    for 9 Speakers: (Refer to PROCEDURE - Step 3 )

    for 11 Speakers: (Refer to PROCEDURE - Step 7 )

  17. REMOVE AUDIO AMPLIFIER COVER (w/ Manual (SOS) Switch)

    Refer to PROCEDURE - Step 2

  18. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BACK-UP BATTERY (w/ Manual (SOS) Switch)

    Refer to PROCEDURE - Step 3

  19. REMOVE FLOOR CARPET HOOK

    Refer to PROCEDURE - Step 26 Refer to PROCEDURE - Step 26

  20. REMOVE NO. 4 CROSS MEMBER FLOOR REINFORCEMENT SUB-ASSEMBLY
    1. Turn back the floor carpet to a position where the No. 4 cross member floor reinforcement sub-assembly can be removed.

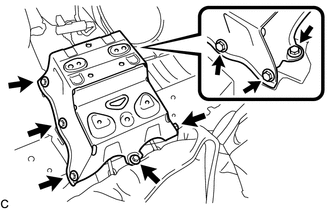

    2. Remove the 8 bolts and No. 4 cross member floor reinforcement sub-assembly.
      GTY373751Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  21. REMOVE NO. 4 PARKING BRAKE CABLE ASSEMBLY
    1. Separate the No. 3 parking brake cable assembly from the parking brake equalizer.
      GTY598929Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      TEXT IN ILLUSTRATION

      *1 Parking Brake Equalizer
      *2 No. 2 Parking Brake Cable Assembly
      *3 No. 3 Parking Brake Cable Assembly
      *4 No. 4 Parking Brake Cable Assembly
    2. Separate the No. 2 parking brake cable assembly to remove the parking brake equalizer.
    3. Slide the parking brake equalizer and rubber boot.
      GTY544716Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      TEXT IN ILLUSTRATION

      *1 Rubber Boot
      *2 Parking Brake Equalizer
      *3 No. 4 Parking Brake Cable Assembly
    4. Remove the No. 4 parking brake cable assembly from the parking brake equalizer.
  22. REMOVE PARKING BRAKE SHOE LEVER

    (Refer to DISASSEMBLY [10/2014 - ] )

  23. REMOVE NO. 2 FLOOR UNDER COVER (for LH Side)

    Refer to PROCEDURE - Step 2

  24. REMOVE NO. 1 FLOOR UNDER COVER (for RH Side)

    Refer to PROCEDURE - Step 3

  25. REMOVE NO. 3 PARKING BRAKE CABLE ASSEMBLY
    1. Remove the clip from the No. 3 parking brake cable assembly.
      GTY316219Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

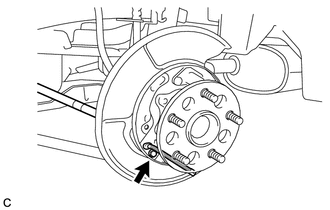

    2. Remove the bolt and separate the No. 3 parking brake cable assembly.
      GTY316220Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

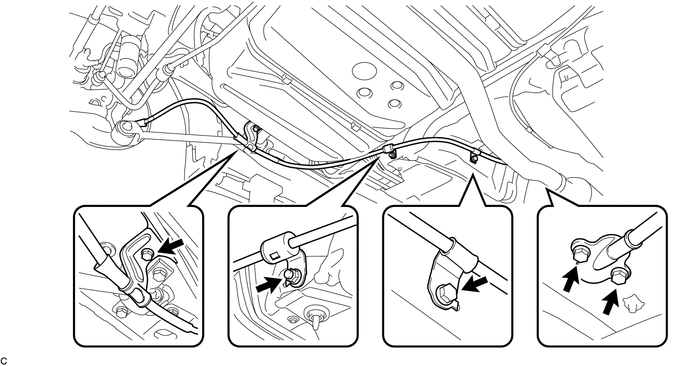

    3. Remove the 4 bolts, nut and No. 3 parking brake cable assembly.
      GTY373749Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  26. REMOVE NO. 2 PARKING BRAKE CABLE CLAMP
    1. Remove the No. 2 parking brake cable clamp.
