Components [10/2014 - ]: Illustration

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

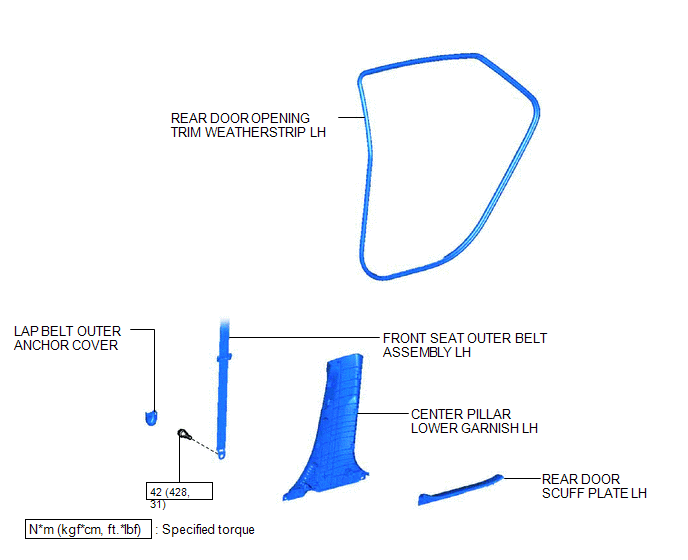

Fig 1: Parking Brake Cable Replacement Components With Torque Specifications (1 Of 5)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

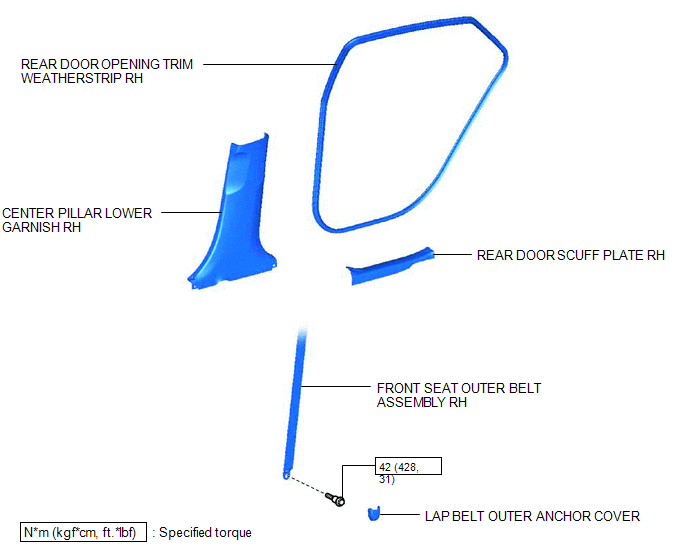

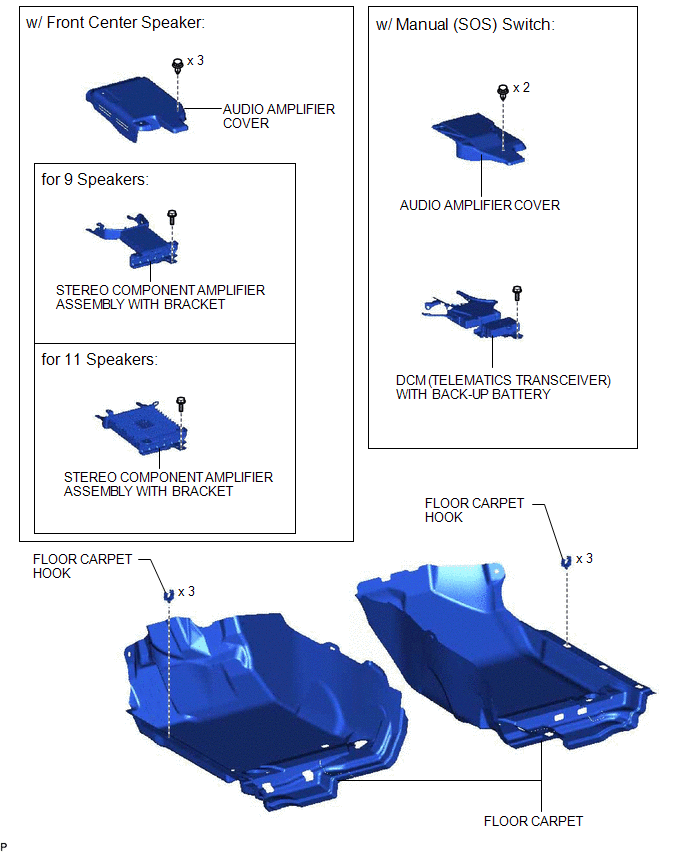

Fig 1: Parking Brake Cable Replacement Components With Torque Specifications (2 Of 5)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

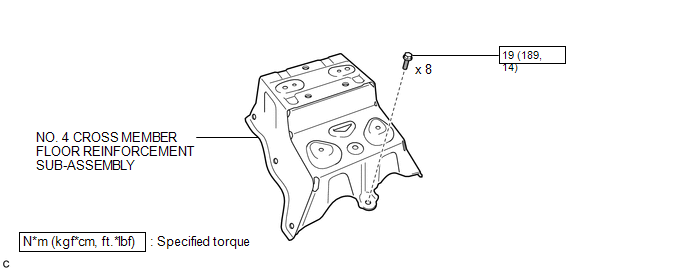

Fig 1: Parking Brake Cable Replacement Components With Torque Specifications (3 Of 5)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

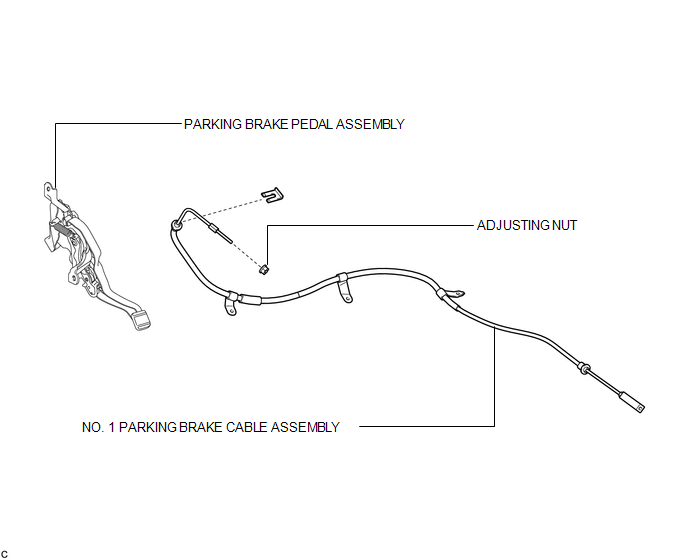

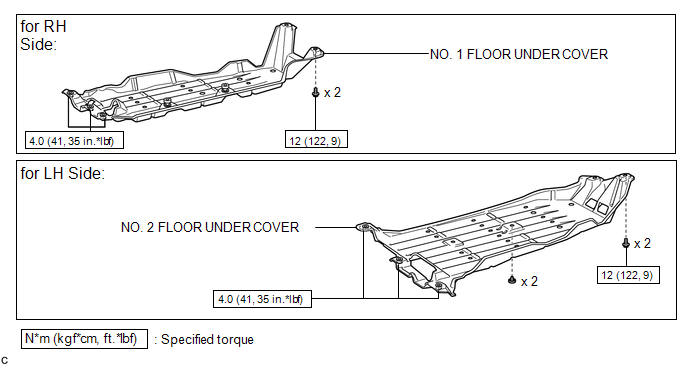

Fig 1: Parking Brake Cable Replacement Components With Torque Specifications (4 Of 5)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

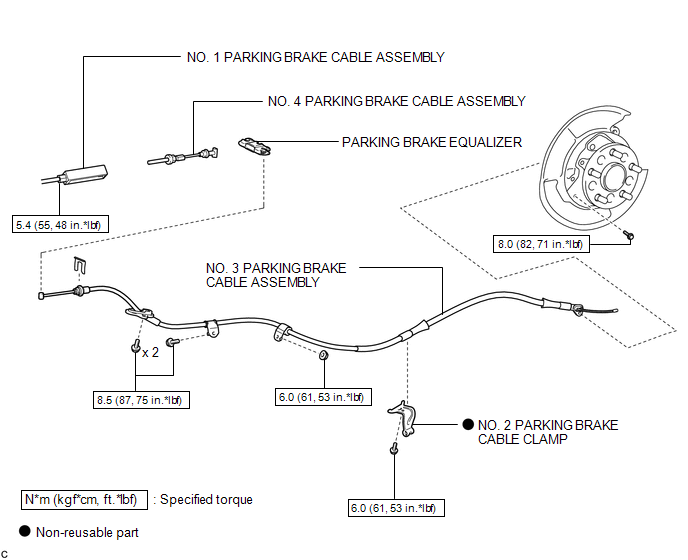

Fig 1: Parking Brake Cable Replacement Components With Torque Specifications (5 Of 5)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
