Reassembly [10/2014 - ]: Procedure

1. Apply high temperature grease to the areas of the parking brake plate which make contact with the shoe as shown in the illustration.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   TEXT IN ILLUSTRATION



   High Temperature Grease

1. Install the 2 parking brake shoe hold down spring pins.

1. Install the parking brake shoe return tension spring to the No. 2 parking brake shoe assembly.

1. Install the No. 1 parking brake shoe assembly to the parking brake shoe return tension spring.

1. Apply high temperature grease to the parking brake shoe adjusting screw set as shown in the illustration.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   TEXT IN ILLUSTRATION



   High Temperature Grease

2. Install the parking brake shoe adjusting screw set to the No. 1 parking brake shoe assembly and No. 2 parking brake shoe assembly.

1. Using needle-nose pliers, install the parking brake shoe lever to the No. 3 parking brake cable assembly.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. Apply high temperature grease to the areas of the parking brake shoe lever which make contact with the No. 2 parking brake shoe assembly.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   TEXT IN ILLUSTRATION



   High Temperature Grease

3. Install the parking brake shoe lever to the No. 2 parking brake shoe assembly.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

4. Expand the No. 1 and No. 2 parking brake shoe assemblies outward by hand and fit them to the parking brake plate.
   NOTE:

   Make sure that the parking brake shoe lever does not separate from the No. 2 parking brake shoe assembly.

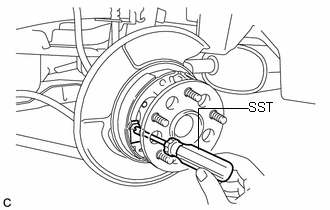

1. Using SST, install the parking brake shoe hold down compression spring.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   • SST: 09718-00011

1. Install the parking brake shoe strut.
2. Install the No. 1 parking brake shoe assembly.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

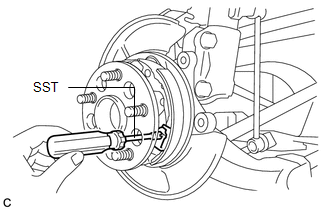

1. Using SST, install the parking brake shoe hold down compression spring.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   • SST: 09718-00011

1. Apply a small amount of high temperature grease to the areas shown in the illustration.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   TEXT IN ILLUSTRATION



   High Temperature Grease

2. Install the parking brake shoe return tension spring.

1. Install the parking brake shoe return tension spring.

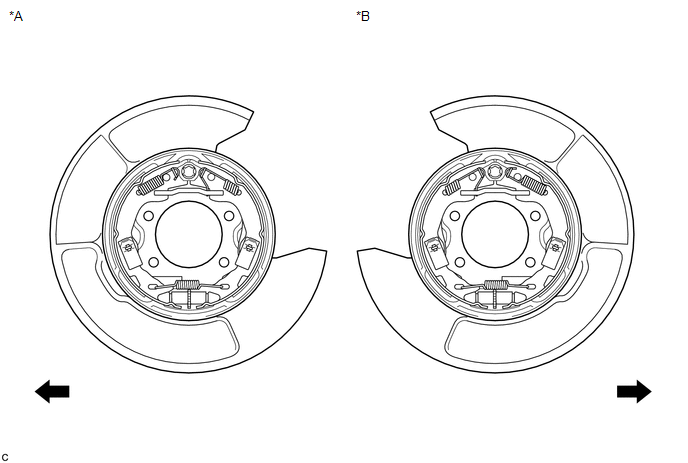

1. Check that each part is installed properly.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   TEXT IN ILLUSTRATION



   *A	LH Side	*B	RH Side
   	Front of the Vehicle	-	-

   NOTE:

   There should be no oil or grease on the friction surfaces of the shoe linings or discs.

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 9

Refer to PROCEDURE - Step 2

1. Drive the vehicle at about 50 km/h (31 mph) on a safe, level and dry road.
2. Depress the parking brake pedal with 150 N (15 kgf, 33.7 lbf) of force.
3. Drive the vehicle for about 400 m (0.25 mile) in this condition.
4. Repeat this procedure 3 times.
   NOTE:

   Set a 5-minute interval between each procedure to prevent the brake assembly from overheating.
