Components [10/2014 - ]: Illustration

Fig 1: Parking Brake Assembly Replacement Components With Torque Specifications

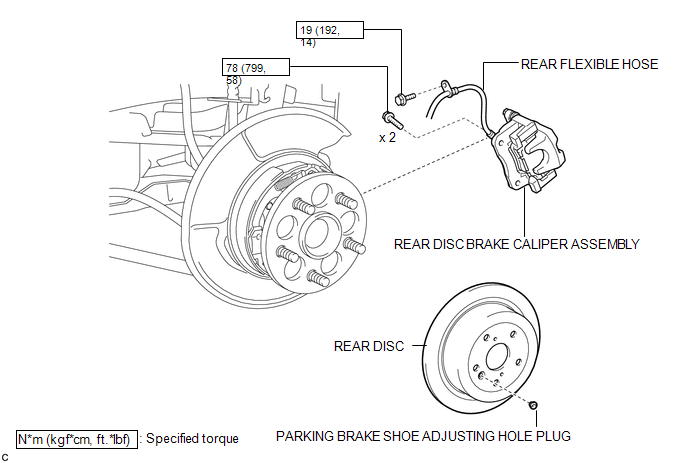

GTY577291Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

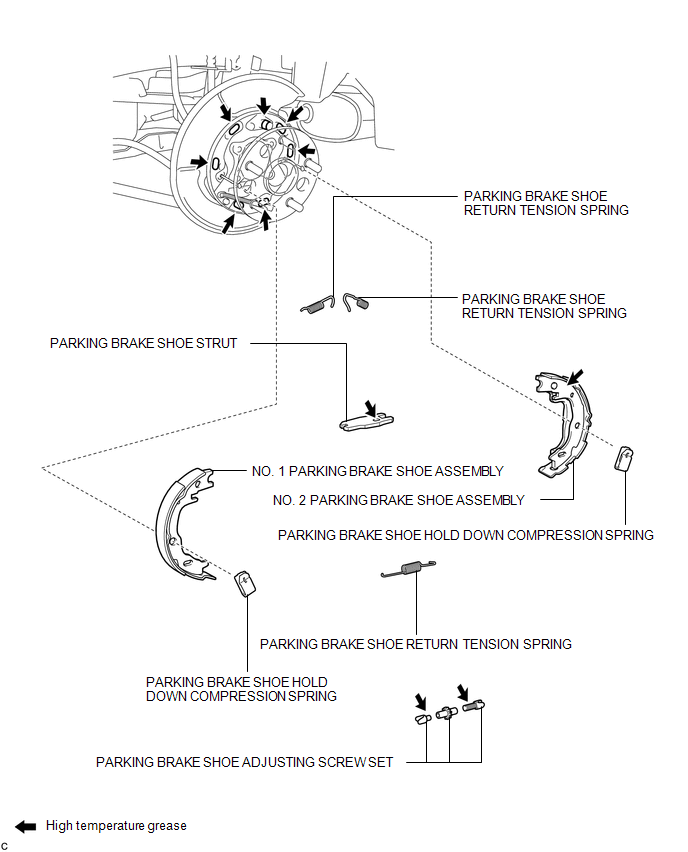

GTY541998Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

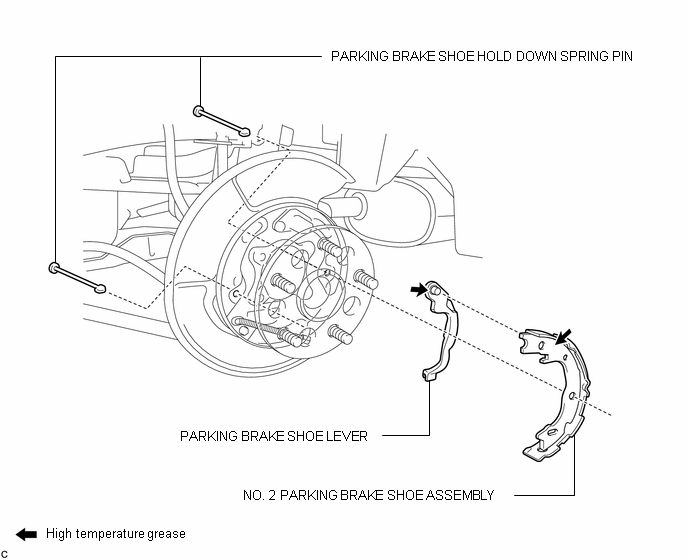

GTY599788Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
