Installation [10/2015 - ]: Procedure

INSTALL CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (w/ ECU Integration Box RH)

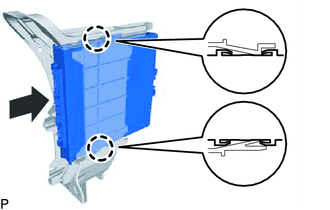

Engage the 2 claws to install the certification ECU (smart key ECU assembly) as shown in the illustration.

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

INSTALL CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (w/o ECU Integration Box RH)
1. Install the certification ECU (smart key ECU assembly) with the nut and bolt.
2. Connect each connector.
INSTALL ECU INTEGRATION BOX RH (w/ ECU Integration Box RH)
1. Install the ECU integration box RH with the 2 nuts and bolt.
  Bolt

  Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

  Nut

  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
2. Engage the clamp.
3. Connect each connector.
INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 12
INSTALL LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
(Refer to INSTALLATION [10/2014 - ] )
