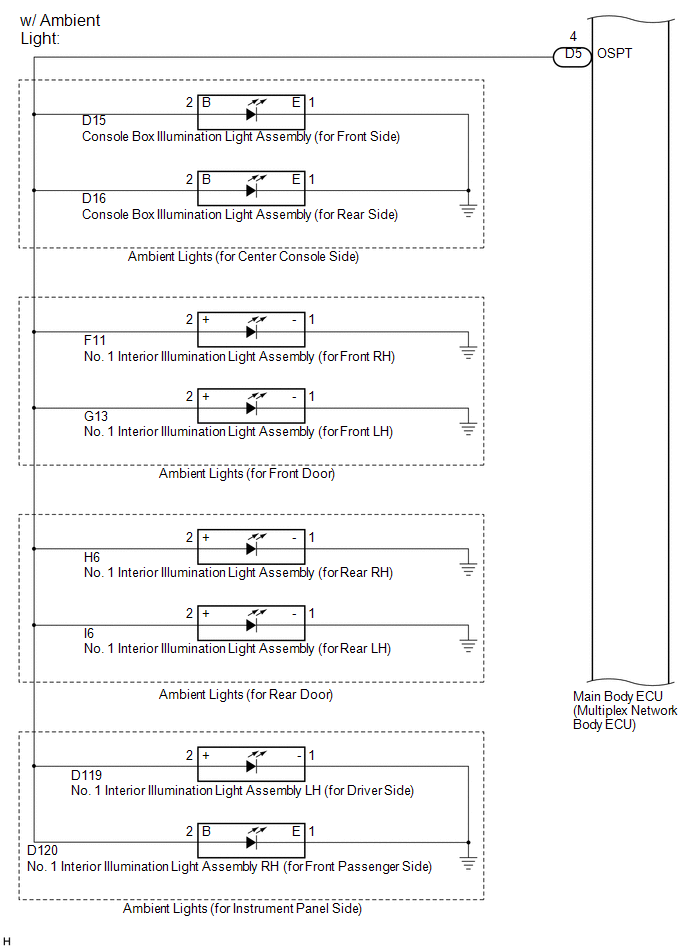

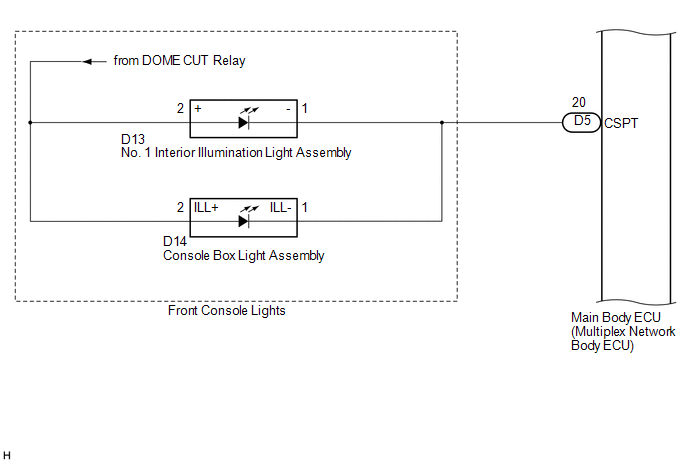

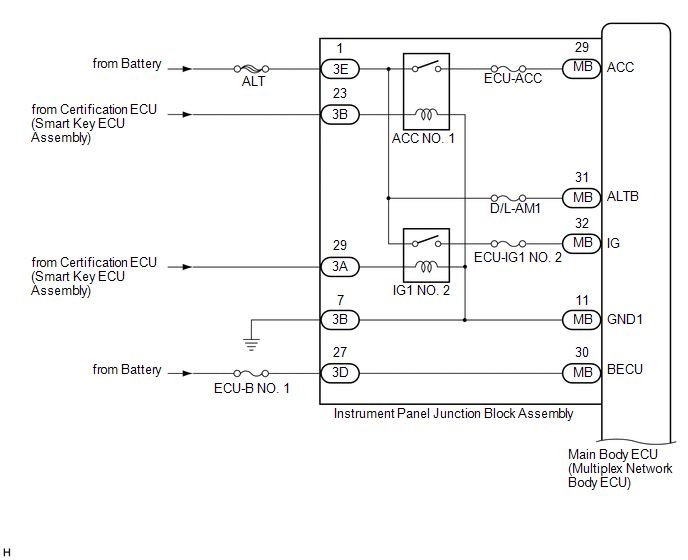

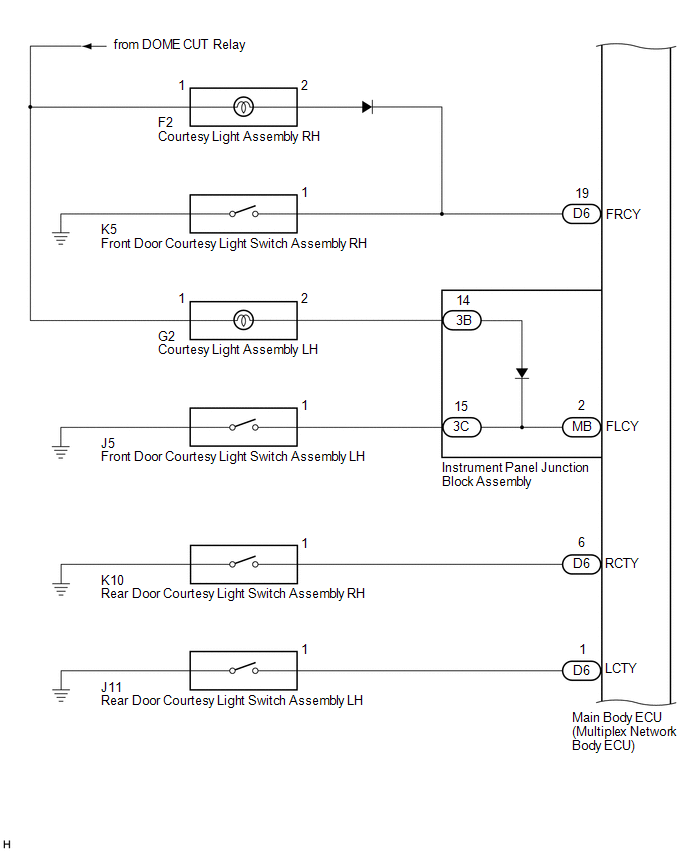

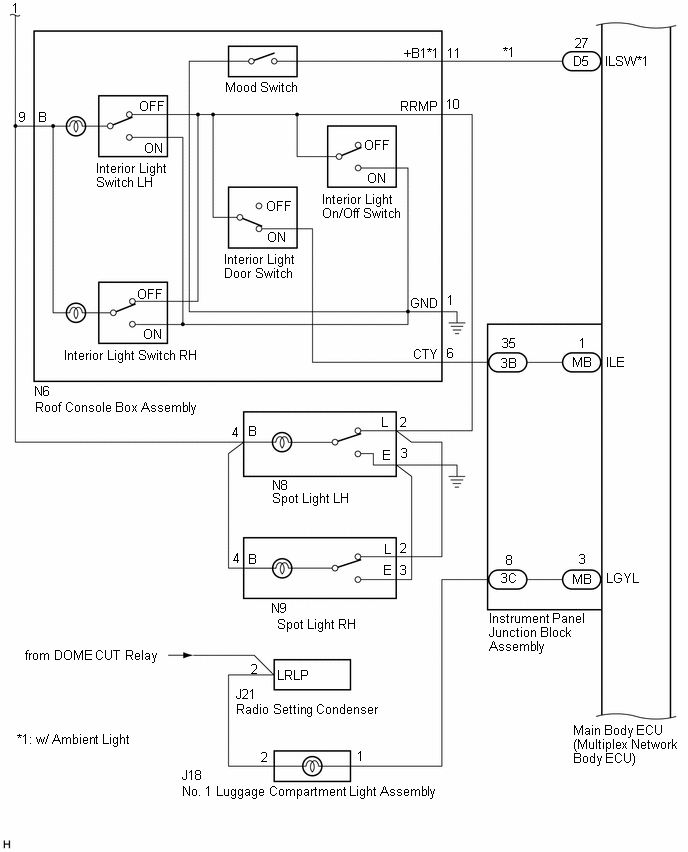

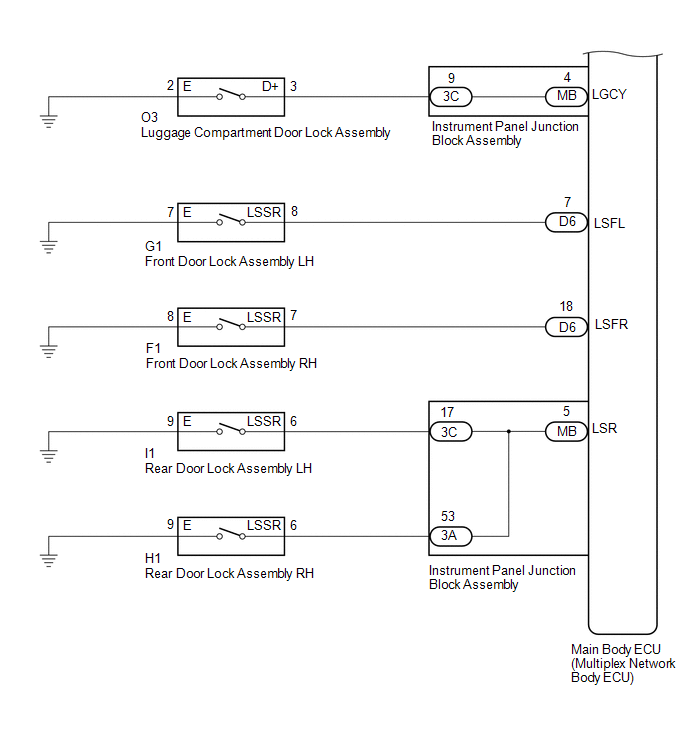

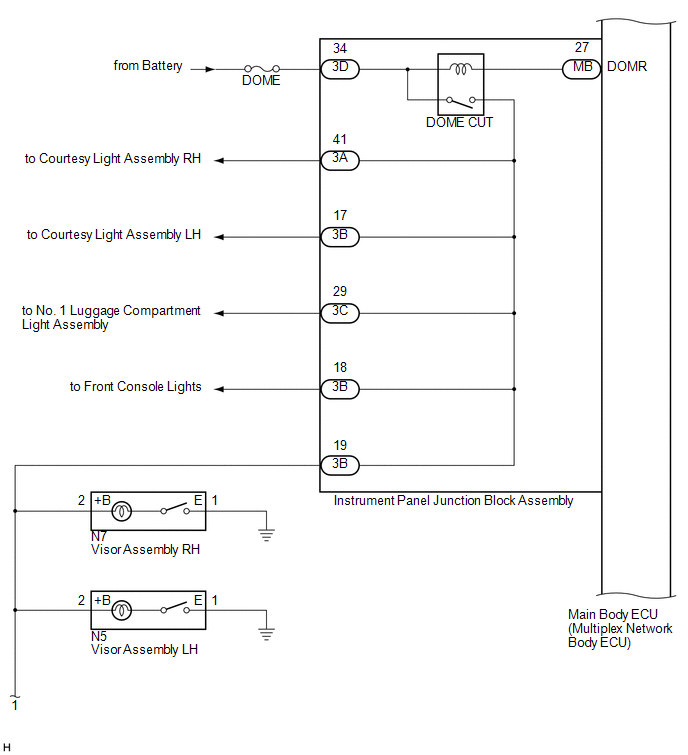

Home >> Toyota >> 2018 >> Avalon XLE >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting System - Diagnostics & Circuit Tests - (Except Hybrid) >> Lighting System >> System Diagram [10/2014 - ] >> System Diagram [10/2014 - ]
