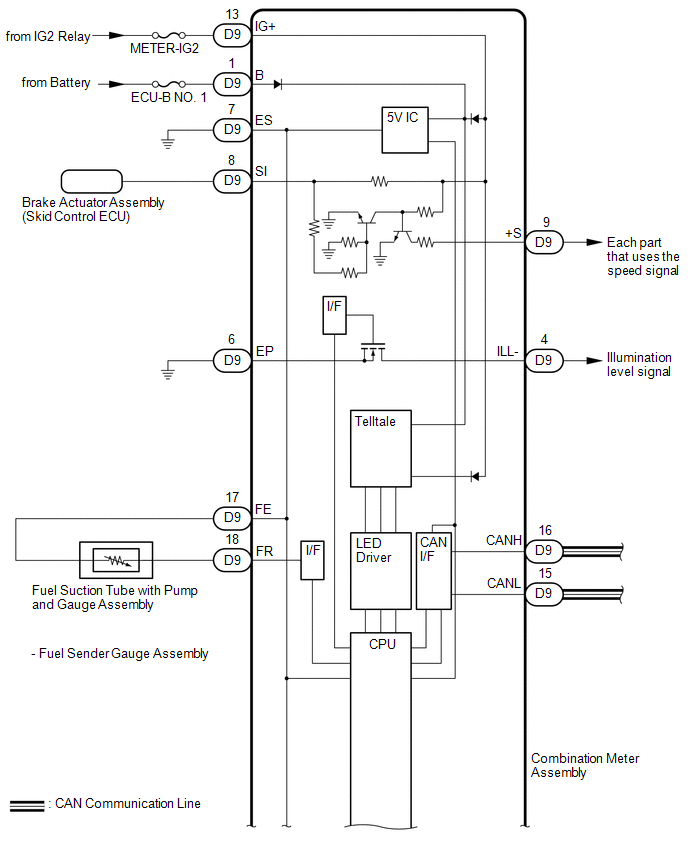

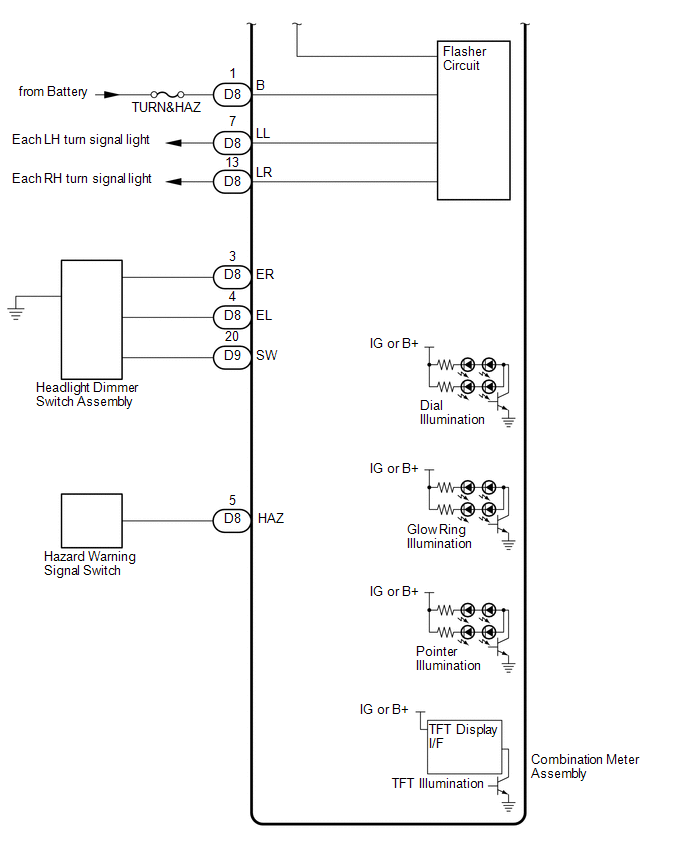

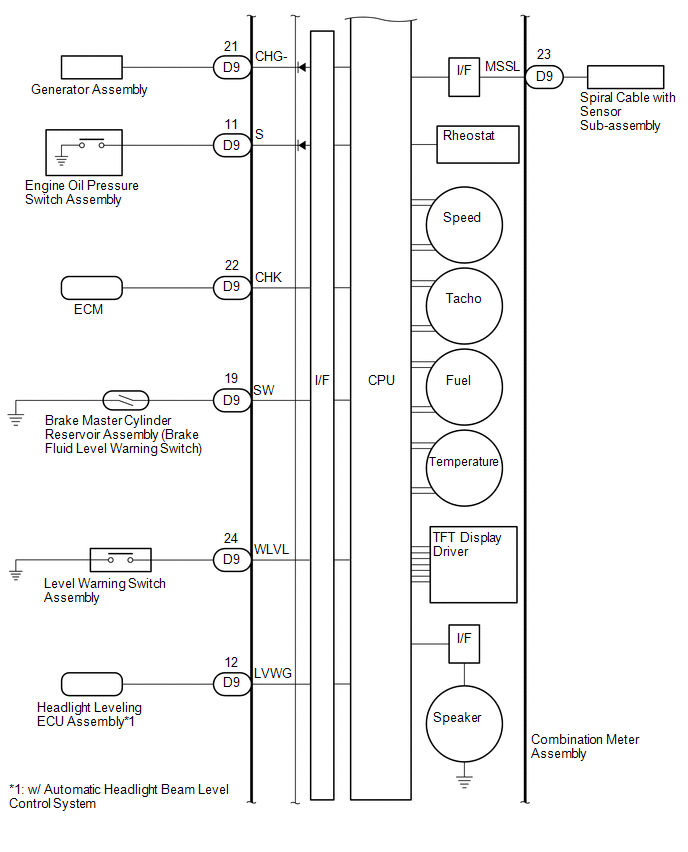

Home >> Toyota >> 2018 >> Avalon XLE >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter / Gauge System - Diagnostics - Introduction - (Except Hybrid) >> Meter / Gauge System >> System Diagram [10/2014 - ] >> System Diagram [10/2014 - ]
