DTC B2799: Engine Immobilizer System Malfunction [10/2014 - ]: Procedure

  1. CLEAR DTC
    1. Clear the DTCs (Refer to DTC CHECK / CLEAR [10/2014 - ] ).

    Result:

    NEXT

    See step  2

  2. CHECK FOR DTC
    1. Start the engine.
    2. Wait 10 seconds or more.
    3. Check for DTCs (Refer to DTC CHECK / CLEAR [10/2014 - ] ).

      HINT:

      Before checking for DTCs, perform the "DTC Output Confirmation Operation" procedure.

      OK

      DTC B2799 is not output.

      RESULT

      Result Proceed to
      OK A
      NG (DTC B2799 is output) B
      NG (Other DTCs are output) C

    Result:

    USE SIMULATION METHOD TO CHECK

    (Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2014 - 10/2015] Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2015 - ] )

    Result:

    GO TO DIAGNOSTIC TROUBLE CODE CHART

    (Refer to DIAGNOSTIC TROUBLE CODE CHART [10/2014 - ] )

    Result:

    See step  3

  3. INSPECT ECM (TERMINAL IMO)
    1. Using an oscilloscope, check the waveform.

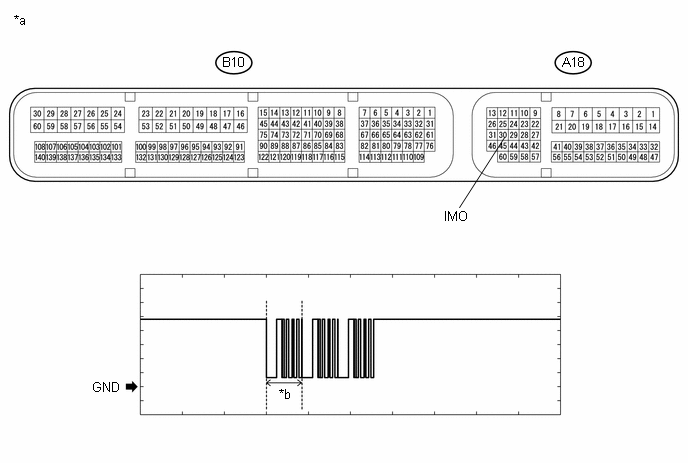

      GTY549383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Component with harness connected
      (ECM)
      *b Waveform
      MEASUREMENT CONDITION

      Item Content
      Tester Connection A18-30 (IMO) - B10-49 (E1)
      Tool Setting 2 V/DIV., 500 ms./DIV.
      Condition Within 3 seconds of engine start or within 3 seconds of engine switch turned on (IG) after battery cable disconnected and reconnected

      OK

      Waveform is output normally (refer to illustration).

      RESULT

      Result Proceed to
      Normal waveform A
      Terminal IMO stuck low (2.4 V or less) B
      Terminal IMO stuck high (12 V) or Abnormal waveform C

    Result:

    See step  7

    Result:

    See step  12

    Result:

    See step  4

  4. INSPECT ECM (TERMINAL IMI)
    1. Using an oscilloscope, check the waveform.

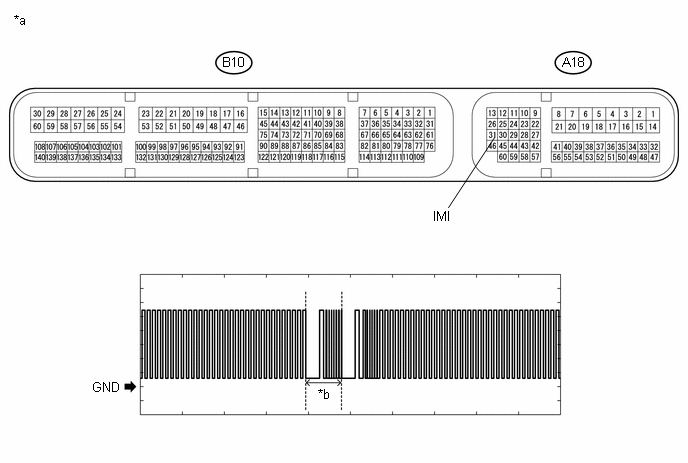

      GTY547802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Component with harness connected
      (ECM)
      *b Waveform
      MEASUREMENT CONDITION

      Item Content
      Tester Connection A18-31 (IMI) - B10-49 (E1)
      Tool Setting 2 V/DIV., 500 ms./DIV.
      Condition Within 3 seconds of engine start or within 3 seconds of engine switch turned on (IG) after battery cable disconnected and reconnected

      OK

      Waveform is output normally (refer to illustration).

      RESULT

      Result Proceed to
      Normal waveform A
      Not output waveform or abnormal waveform B

    Result:

    See step  9

    Result:

    See step  5

  5. REGISTER ECU COMMUNICATION ID
    1. Reregister the ECU communication ID (Refer to REGISTRATION [10/2014 - ] ).

    Result:

    NEXT

    See step  6

  6. CHECK WHETHER ENGINE STARTS
    1. Check that the engine starts with an already registered vehicle key.

      OK

      Engine starts normally.

    Result:

    OK

    END (COMMUNICATION ID REGISTRATION WAS DEFECTIVE)

    Result:

    NG

    See step  12

  7. INSPECT ECM (IMO TERMINAL VOLTAGE)
    1. Disconnect the A18 ECM connector.
      GTY585687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the engine switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Result

      Result Proceed to
      Terminal IMO stuck low (2.4 V or less) A
      Terminal IMO stuck high (12 V) B
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to ECM)

    Result:

    See step  12

    Result:

    See step  8

  8. CHECK HARNESS AND CONNECTOR (ECM - CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) AND BODY GROUND)
    1. Disconnect the A28 certification ECU (smart key ECU assembly) connector.
    2. Disconnect the A18 ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A28-14 (EFII) - A18-30 (IMO) Always Below 1 Ω
      A28-14 (EFII) or A18-30 (IMO) - Body ground Always 10 kΩ or higher
      A28-13 (EFIO) - A18-31 (IMI) Always Below 1 Ω
      A28-13 (EFIO) or A18-31 (IMI) - Body ground Always 10 kΩ or higher

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  9

  9. REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
    1. Temporarily replace the certification ECU (smart key ECU assembly) with a new one (Refer to REGISTRATION [10/2014 - ] ).

    Result:

    NEXT

    See step  10

  10. REGISTER ECU COMMUNICATION ID
    1. Reregister the ECU communication ID (Refer to REGISTRATION [10/2014 - ] ).

    Result:

    NEXT

    See step  11

  11. CHECK WHETHER ENGINE STARTS
    1. Check that the engine starts with an already registered vehicle key.

      OK

      Engine starts normally.

    Result:

    OK

    END (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) WAS DEFECTIVE)

    Result:

    NG

    REPLACE ECM

    (Refer to REMOVAL [10/2014 - ] )

  12. REPLACE ECM
    1. Temporarily replace the ECM with a new one (Refer to REMOVAL [10/2014 - ] ).

    Result:

    NEXT

    See step  13

  13. REGISTER ECU COMMUNICATION ID
    1. Reregister the ECU communication ID (Refer to REGISTRATION [10/2014 - ] ).

    Result:

    NEXT

    See step  14

  14. CHECK WHETHER ENGINE STARTS
    1. Check that the engine starts with an already registered vehicle key.

      OK

      Engine starts normally.

    Result:

    OK

    END (ECM WAS DEFECTIVE)

    Result:

    NG

    REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
