Removal [10/2014 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work (Refer to PRECAUTION [10/2014 - ] ).

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [10/2014 - 10/2015] or INITIALIZATION [10/2015 - ] ).

  3. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 and PROCEDURE - Step 1

  4. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17

  5. REMOVE INLET NO. 2 AIR CLEANER

    Refer to PROCEDURE - Step 18

  6. REMOVE INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 23

  7. REMOVE AIR CLEANER CAP SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  8. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 20

  9. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21

  10. REMOVE BATTERY

    Refer to PROCEDURE - Step 22

  11. REMOVE STARTER ASSEMBLY

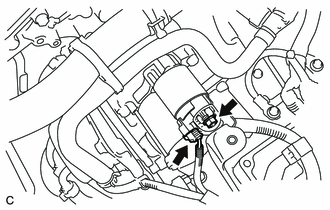

    1. Disconnect the connector.
      GTY318650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Open the cap, remove the nut and disconnect the wire harness.

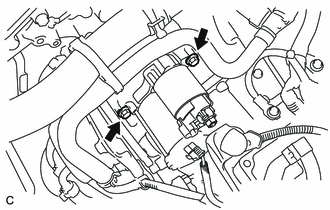

    3. Remove the 2 bolts and starter assembly.
      GTY322741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
