DTC B1507: Open in Turn Signal Circuit; DTC B1508: Short in Turn Signal / Hazard Flasher Circuit [10/2014 - ]: Wiring Diagram

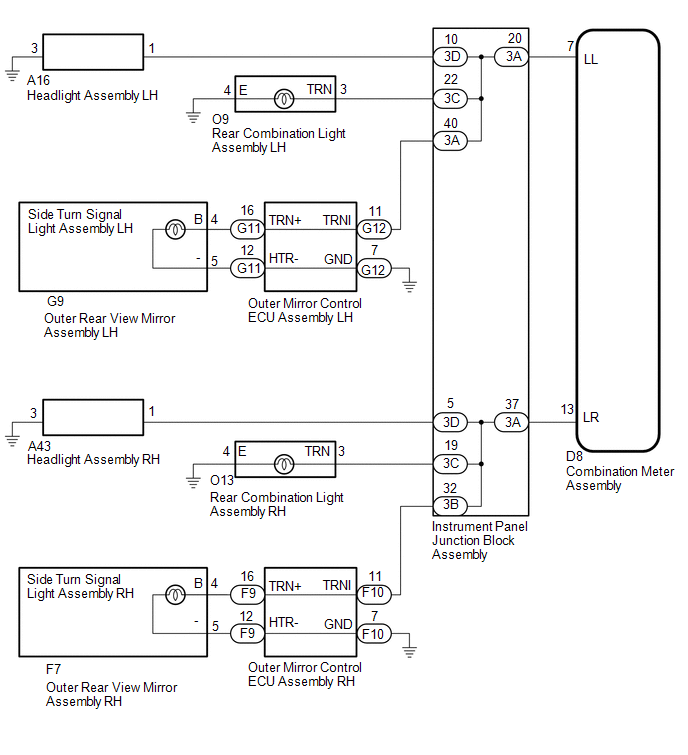

  1. w/ Seat Position Memory
    GTY474814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

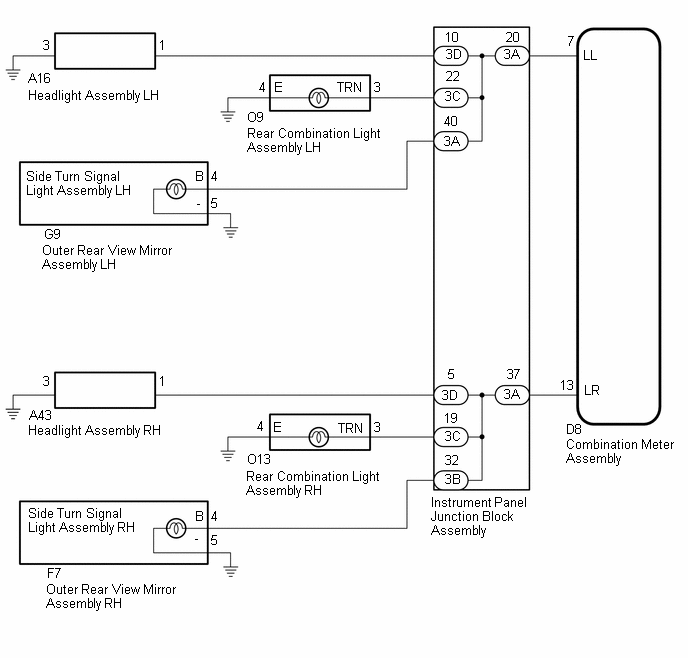

  2. w/o Seat Position Memory
    GTY482197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
