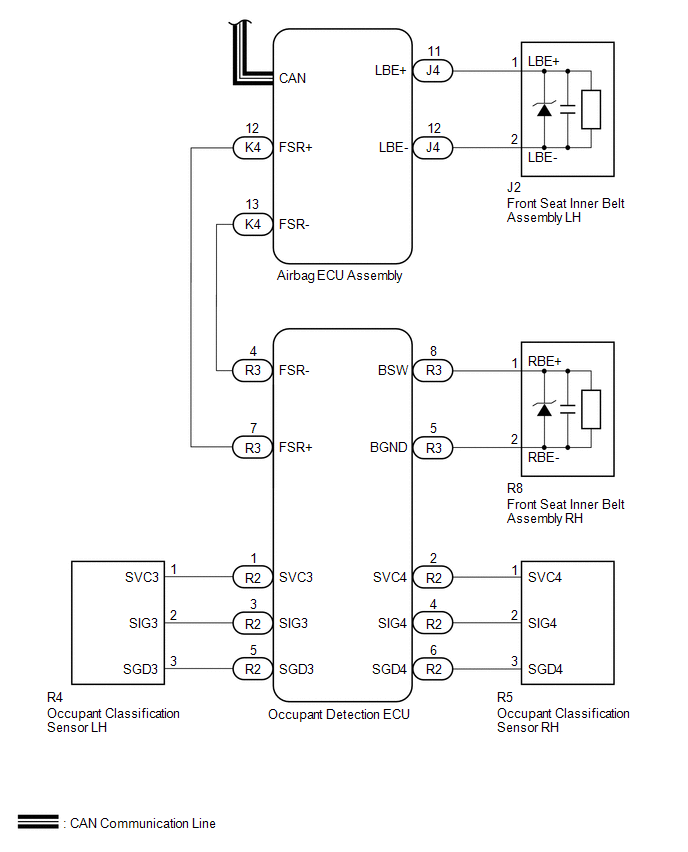

System Diagram [10/2014 - ]
COMMUNICATION TABLE
| Sender | Receiver | Signal | Communication Method |
|---|---|---|---|
| Airbag ECU assembly | Main body ECU (multiplex network body ECU) | Front seat inner belt LH buckle switch | CAN |
| Main body ECU (multiplex network body ECU) | Combination meter assembly |
|
|
| Skid control ECU (brake actuator assembly) | Combination meter assembly | Vehicle speed | |
| ECM | Combination meter assembly | Shift position |
