Parts Location [10/2014 - ]: Illustration

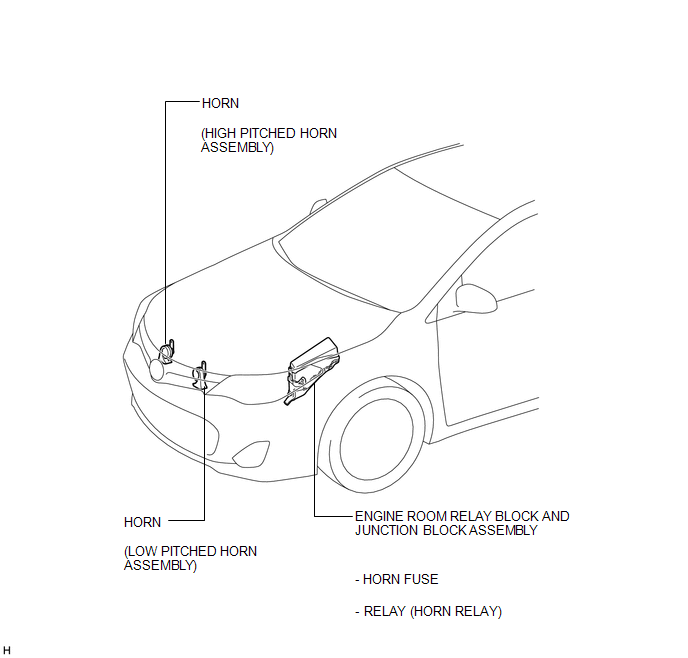

GTY382982

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

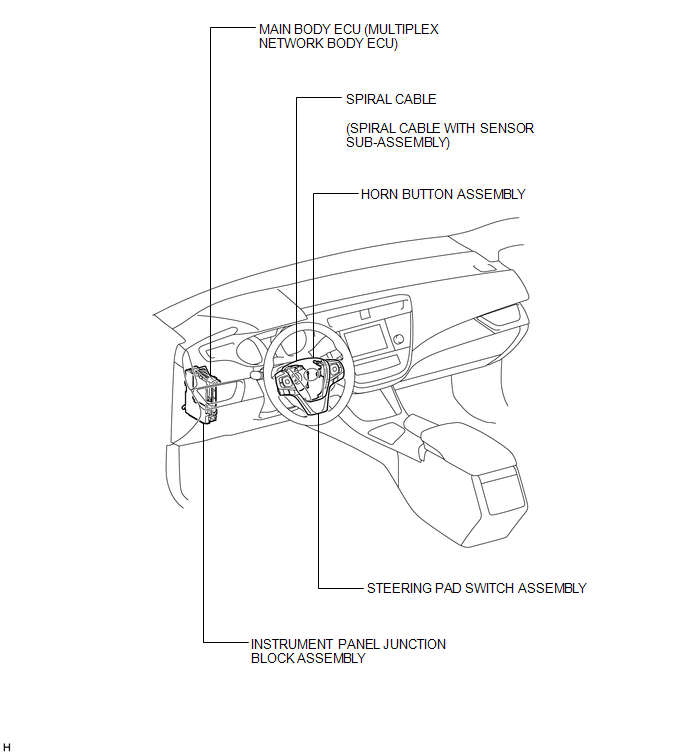

GTY361246

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
