Removal [03/2017 - ]: Procedure

  1. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [03/2017 - ]

  2. REMOVE INSTRUMENT PANEL ORNAMENT

    Refer to PROCEDURE - Step 4

  3. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 5

  4. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH

    HINT:

    Use the same procedure as for the No. 2 instrument cluster finish panel garnish.

  5. REMOVE AIR CONDITIONING CONTROL ASSEMBLY
    1. Remove the 2 screws.
      GTY471310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 6 claws.

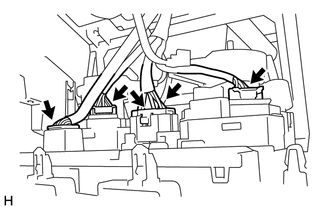

    3. Disconnect each connector and air conditioning control assembly.
      GTY471311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

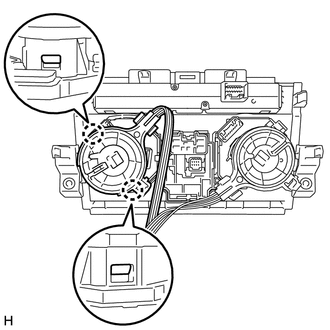

    4. Disengage the 2 claws and heater control cable sub-assembly.
      GTY471883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Setting the temperature adjustment dial to MAX HOT is useful when replacing the air conditioner unit assembly, and makes positioning easier when attaching cables.

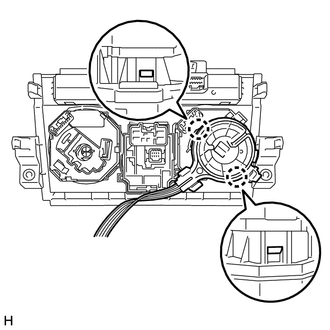

    5. Disengage the 2 claws and air inlet damper control cable sub-assembly to remove the air conditioning control assembly.
      GTY471309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Setting the blower dial to DEF is useful when replacing the air conditioner unit assembly, and makes positioning easier when attaching cables.
