Removal [03/2017 - ]: Procedure

  1. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [03/2017 - ]

  2. REMOVE INSTRUMENT PANEL ORNAMENT

    Refer to PROCEDURE - Step 4

  3. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 5

  4. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH

    HINT:

    Use the same procedure as for the No. 2 instrument cluster finish panel garnish.

  5. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

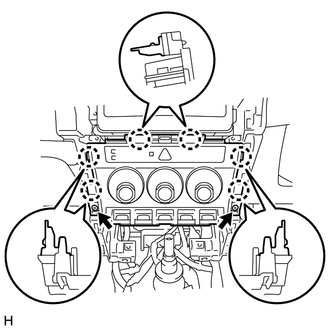

    1. Remove the 2 screws.
      GTY385742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 6 claws.

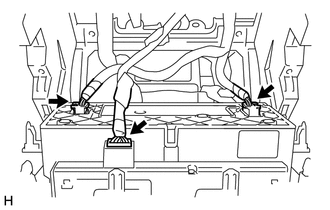

    3. Disconnect each connector and remove the air conditioning control assembly.
      GTY385565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
