Disassembly [06/2016 - ]: Procedure

  1. REMOVE COMBINATION METER GLASS

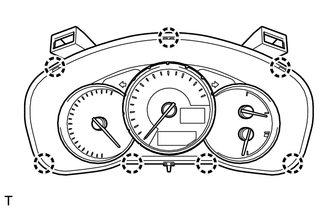

    1. Disengage the 7 claws and remove the combination meter glass.
      GTY697555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not touch the pointer and the dial plate when removing the combination meter glass and combination meter cover.
      • Do not allow any dirt (fingerprints, grease, etc.) to adhere to the combination meter glass or meter display panel. If they are dirty, wipe them clean with a soft cloth.
  2. REMOVE COMBINATION METER COVER
    1. Disengage the 6 claws and remove the combination meter cover.
      GTY732044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the pointer and the dial plate when removing the combination meter glass and combination meter cover.
