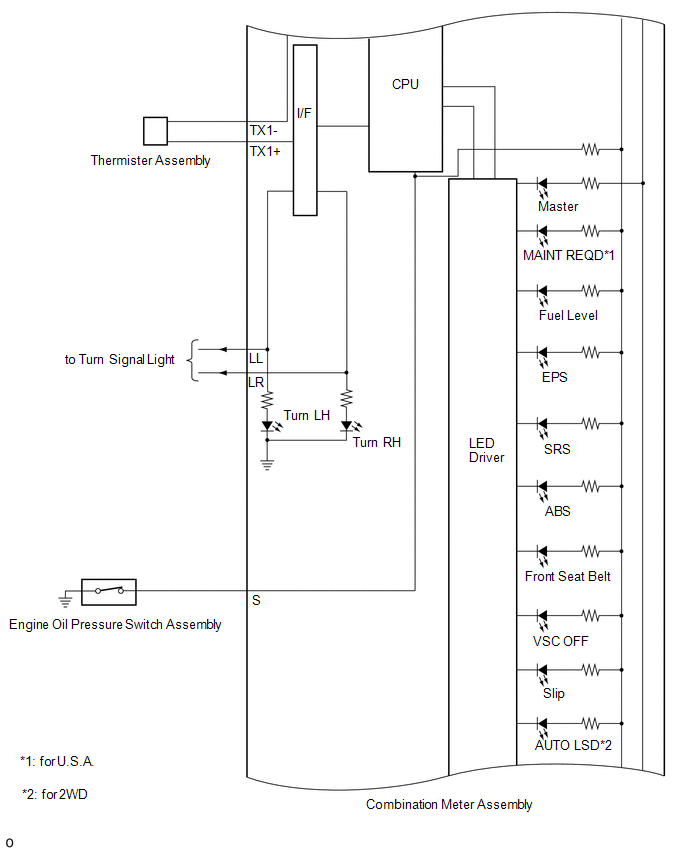

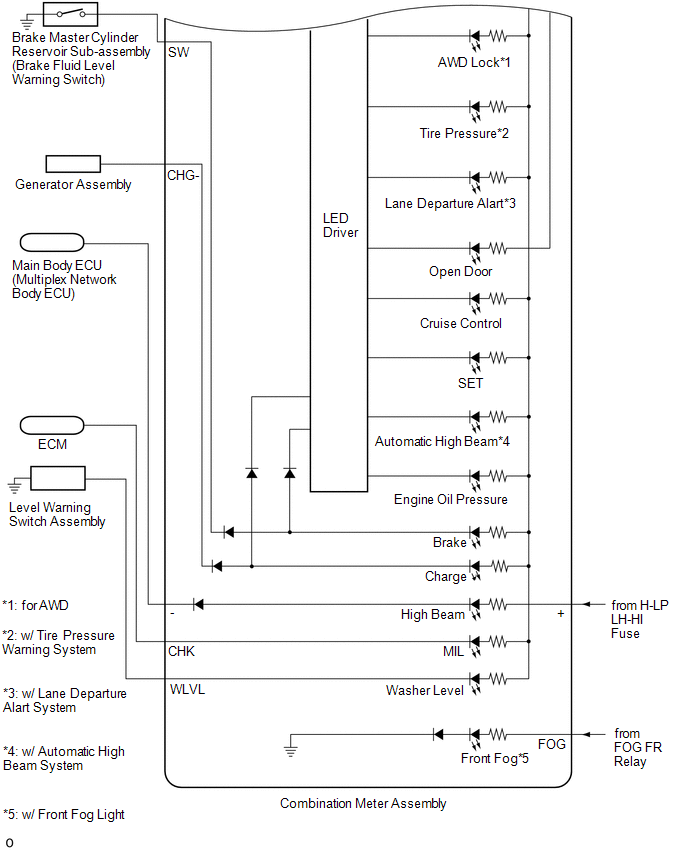

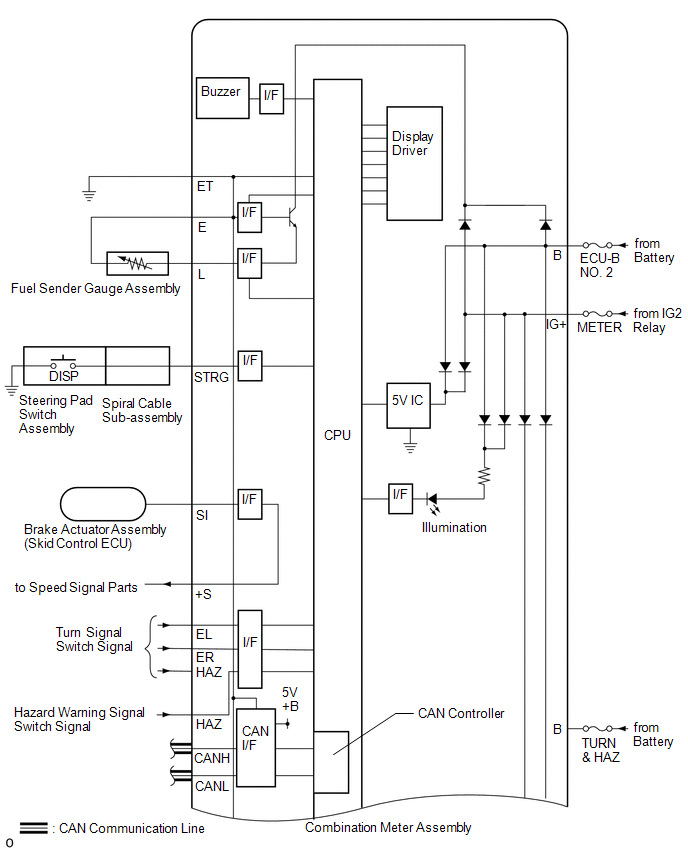

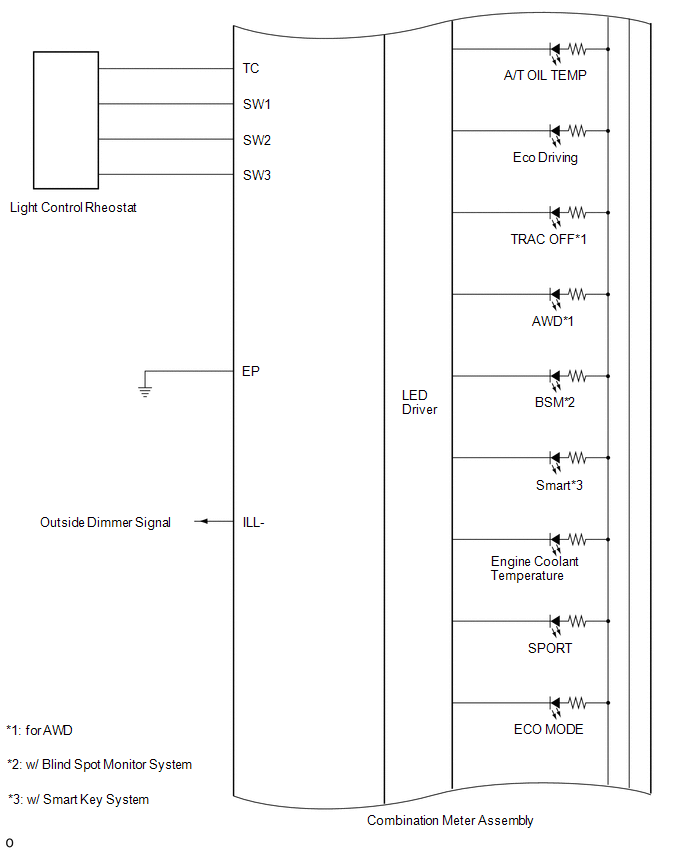

System Diagram [12/2012 - 10/2015]

Refer to SYSTEM DIAGRAM [12/2012 - 11/2013] , or refer to SYSTEM DIAGRAM [11/2013 - 10/2015]

1. Meter or Gauge

   Meter or Gauge	Communication Signal	Sender	Communication Line	Receiver
   Speedometer	Vehicle speed	Brake actuator assembly (skid control ECU)	CAN	Combination meter assembly
   Tachometer	Engine speed	ECM	CAN	Combination meter assembly
   Fuel receiver gauge	Fuel level	Fuel sender gauge assembly	Direct line	Combination meter assembly

2. Warning or Indicator

   Warning or Indicator	Communication Signal	Sender	Communication Line	Receiver
   Open door warning light	Each door courtesy switch	Main body ECU (multiplex network body ECU)	CAN	Combination meter assembly
   Brake warning light	Brake warning light	Brake actuator assembly (skid control ECU)	CAN	Combination meter assembly
   	Parking brake switch	Main body ECU (multiplex network body ECU)
   	Brake fluid level	Brake master cylinder reservoir sub-assembly (brake fluid level warning switch)	Direct line
   Front seat belt warning light	Driver side seat belt buckle switch	Airbag sensor assembly	CAN	Combination meter assembly
   	Passenger side seat belt buckle switch
   SRS warning light	SRS warning light	Airbag sensor assembly	CAN	Combination meter assembly
   Engine coolant temperature warning light	Engine coolant temperature	ECM	CAN	Combination meter assembly
   Charge warning light	Charge warning light	ECM	CAN	Combination meter assembly
   		Generator assembly	Direct line
   Engine oil pressure warning light	Engine oil pressure switch	Engine oil pressure switch assembly	Direct line	Combination meter assembly
   A/T OIL TEMP warning light	A/T OIL TEMP warning light	ECM	CAN	Combination meter assembly
   EPS warning light	EPS warning light	Power steering ECU assembly	CAN	Combination meter assembly
   MIL	MIL	ECM	Direct line	Combination meter assembly
   Slip indicator light	Slip indicator light	Brake actuator assembly (skid control ECU)	CAN	Combination meter assembly
   VSC OFF indicator light	VSC OFF indicator light	Brake actuator assembly (skid control ECU)	CAN	Combination meter assembly
   TRAC OFF indicator light*1	TRAC OFF indicator light	Brake actuator assembly (skid control ECU)	CAN	Combination meter assembly
   ABS warning light	ABS warning light	Brake actuator assembly (skid control ECU)	CAN	Combination meter assembly
   Tire pressure warning light*2	Tire pressure warning light	Tire pressure warning ECU and receiver	CAN	Combination meter assembly
   Fuel level warning light	Fuel level	Fuel sender gauge assembly	Direct line	Combination meter assembly
   AWD warning light*1	AWD warning	4WD ECU assembly	CAN	Combination meter assembly
   AWD lock indicator light*1	AWD lock indicator light	4WD ECU assembly	CAN	Combination meter assembly
   AUTO LSD indicator light*3	AUTO LSD indicator light	Brake actuator assembly (skid control ECU)	CAN	Combination meter assembly
   BSM indicator light*4	BSM indicator light	Blind spot monitor sensor	CAN	Combination meter assembly
   Automatic High Beam indicator light*5	Automatic High Beam indicator light	Main body ECU (multiplex network body ECU)	CAN	Combination meter assembly
   Cruise control indicator light	Cruise control indicator light	ECM	CAN	Combination meter assembly
   	Cruise control warning
   Smart warning light*6	Smart warning light	Certification ECU (smart key ECU assembly)	CAN	Combination meter assembly
   High beam indicator light	High beam indicator light	Main body ECU (multiplex network body ECU)	Direct line	Combination meter assembly
   Front fog indicator light*7	Front fog light	FOG FR relay	Direct line	Combination meter assembly
   Turn indicator light	Hazard answer-back	Main body ECU (multiplex network body ECU)	CAN	Combination meter assembly
   	Turn signal switch	Headlight dimmer switch assembly	Direct line
   	Hazard warning signal switch	Telltale light assembly (hazard warning signal switch)
   	Turn signal light operation	Combination meter assembly		Turn signal lights
   SPORT indicator light	SPORT indicator light	ECM	CAN	Combination meter assembly
   ECO MODE indicator light	ECO MODE indicator light	ECM	CAN	Combination meter assembly
   Eco driving indicator light	Ecology light indicator	ECM	CAN	Combination meter assembly
   SET indicator light	SET indicator light	ECM	CAN	Combination meter assembly
   Lane departure alert indicator light*8	Lane departure alert indicator light	Lane departure warning camera	CAN	Combination meter assembly
   MAINT REQD indicator light*9	ODO	Brake actuator assembly (skid control ECU)	CAN	Combination meter assembly
   Washer level indicator light	Level warning switch	Level warning switch assembly	Direct line	Combination meter assembly

   1. *1: for AWD
   2. *2: w/ Tire Pressure Warning System
   3. *3: for 2WD
   4. *4: w/ Blind Spot Monitor System
   5. *5: w/ Automatic High Beam System
   6. *6: w/ Smart Key System
   7. *7: w/ Rear Fog Light
   8. *8: w/ Lane Departure Alart System
   9. *9: for U.S.A.
3. Multi-information Display

   Multi-information Display	Communication Signal	Sender	Communication Line	Receiver
   Engine coolant temperature receiver gauge	Engine coolant temperature	ECM	CAN	Combination meter assembly
   Eco driving indicator zone display	Eco driving indicator zone display level	ECM	CAN	Combination meter assembly
   Outside temperature	Vehicle speed	Brake actuator assembly (skid control ECU)	CAN	Combination meter assembly
   	Outside temperature	Thermister assembly	Direct line
   	DISP switch	Steering pad switch assembly
   Shift position indicator	Shift position	ECM	CAN	Combination meter assembly
   	Mode indicator
   	Transaxle fluid temperature
   Current fuel consumption	Engine speed	ECM	CAN	Combination meter assembly
   	Fuel consumption amount
   	ACC	Main body ECU (multiplex network body ECU)
   	Vehicle speed	Brake actuator assembly (skid control ECU)
   	ODO
   Average fuel consumption	Engine speed	ECM	CAN	Combination meter assembly
   	Fuel consumption amount
   	Average fuel consumption reset request
   	ACC	Main body ECU (multiplex network body ECU)
   	Vehicle speed	Brake actuator assembly (skid control ECU)
   	ODO
   	DISP switch	Steering pad switch assembly	Direct line
   Cruising range	Engine speed	ECM	CAN	Combination meter assembly
   	Fuel consumption amount
   	Engine type
   	ACC	Main body ECU (multiplex network body ECU)
   	Vehicle speed	Brake actuator assembly (skid control ECU)
   	ODO
   	Fuel level	Fuel sender gauge assembly	Direct line
   Average vehicle speed	Engine speed	ECM	CAN	Combination meter assembly
   	ACC	Main body ECU (multiplex network body ECU)
   	Vehicle speed	Brake actuator assembly (skid control ECU)
   	ODO
   ODO/TRIP meter	Transaxle type	ECM	CAN	Combination meter assembly
   	ACC	Main body ECU (multiplex network body ECU)
   	Vehicle speed	Brake actuator assembly (skid control ECU)
   	ODO
   	DISP switch	Steering pad switch assembly	Direct line

4. Buzzer

   Buzzer	Communication Signal	Sender	Communication Line	Receiver
   Seat belt warning buzzer	Shift position P	ECM	CAN	Combination meter assembly
   	Shift position R
   	Vehicle speed	Brake actuator assembly (skid control ECU)
   	Parking brake switch	Main body ECU (multiplex network body ECU)
   	Each door courtesy switch
   	Driver side seat belt buckle switch	Airbag sensor assembly
   	Passenger side seat belt buckle switch
   EPS buzzer	EPS warning light	Power steering ECU assembly	CAN	Combination meter assembly
   Smart Key system buzzer*1	Smart Key system buzzer	Certification ECU (smart key ECU assembly)	CAN	Combination meter assembly
   Key reminder buzzer*2	Unlock warning switch	Main body ECU (multiplex network body ECU)	CAN	Combination meter assembly
   	Driver side door courtesy light switch
   Brake buzzer	Brake buzzer request	Brake actuator assembly (skid control ECU)	CAN	Combination meter assembly
   Engine immobiliser certification buzzer*1	Certification complete	Certification ECU (smart key ECU assembly)	CAN	Combination meter assembly
   PKB-ON driving warning buzzer	Parking brake switch	Main body ECU (multiplex network body ECU)	CAN	Combination meter assembly
   	Vehicle speed	Brake actuator assembly (skid control ECU)
   Driving with any door opened warning buzzer	Vehicle speed	Brake actuator assembly (skid control ECU)	CAN	Combination meter assembly
   	Each door courtesy switch	Main body ECU (multiplex network body ECU)
   Sports shift reject buzzer	Sports shift reject buzzer	ECM	CAN	Combination meter assembly
   Light reminder buzzer	Headlight or taillight	Main body ECU (multiplex network body ECU)	CAN	Combination meter assembly
   	Driver side door courtesy light switch
   Turn signal flasher buzzer	Hazard answer-back	Main body ECU (multiplex network body ECU)	CAN	Combination meter assembly
   	Turn signal switch	Headlight dimmer switch assembly	Direct line
   	Hazard warning signal switch	Telltale light assembly (hazard warning signal switch)
   Slide roof buzzer*3	Slide roof buzzer	Main body ECU (multiplex network body ECU)	CAN	Combination meter assembly

   1. *1: w/ Smart Key System
   2. *2: w/o Smart Key System
   3. *3: w/ Sliding Roof
5. Others

   Signal	Communication Signal	Sender	Communication Line	Receiver
   Meter illumination	Auto dimmer	Main body ECU (multiplex network body ECU)	CAN	Combination meter assembly
   	Illumination level	Light control rheostat	Direct line
   Multi-information display change	DISP switch	Steering pad switch assembly	Direct line	Combination meter assembly
