Removal [12/2012 - ]: Procedure

PRECAUTION
WARNING:
Be sure to read Precaution thoroughly before servicing.

Refer to PRECAUTION [12/2012 - ]

NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.

Refer to PRECAUTION [12/2012 - ]
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [12/2012 - 10/2015] Refer to INITIALIZATION [10/2015 - 08/2016] Refer to INITIALIZATION [08/2016 - ]
REMOVE FRONT SEAT ASSEMBLY RH
Refer to REMOVAL [12/2012 - 08/2016] Refer to REMOVAL [08/2016 - ]
REMOVE RECLINING ADJUSTER RELEASE HANDLE RH
Refer to PROCEDURE - Step 1 Refer to PROCEDURE - Step 1
REMOVE FRONT SEAT CUSHION SHIELD RH
Refer to PROCEDURE - Step 3 Refer to PROCEDURE - Step 3
REMOVE FRONT INNER SEAT CUSHION SHIELD RH
Refer to PROCEDURE - Step 5 Refer to PROCEDURE - Step 5
REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY
Refer to PROCEDURE - Step 6 Refer to PROCEDURE - Step 6
REMOVE SEPARATE TYPE SEAT CUSHION COVER WITH PAD
Refer to PROCEDURE - Step 13 Refer to PROCEDURE - Step 13

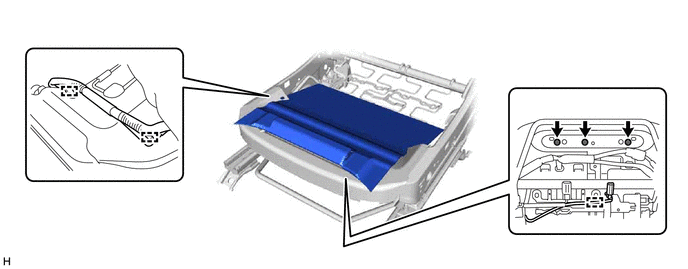

REMOVE FRONT SEAT AIRBAG SUB-ASSEMBLY RH

Detach the 3 clamps from the separate type front seat cushion spring assembly.
WARNING:
- The nuts must not be reused.
- Make sure that the separate type front seat cushion spring assembly is not deformed. If it is, replace it with a new one.

Remove the 3 nuts and front seat airbag sub-assembly RH.
