Removal [12/2012 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    See step  2

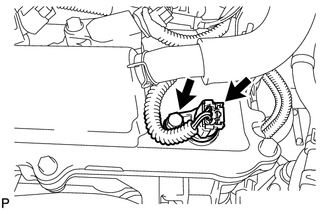

  2. REMOVE CAMSHAFT POSITION SENSOR (for Exhaust Side)
    GTY296379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the camshaft position sensor connector.
    2. Remove the bolt and camshaft position sensor.

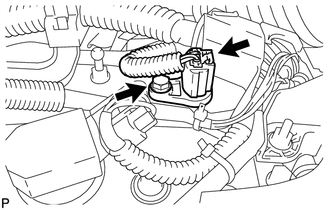

  3. REMOVE CAMSHAFT POSITION SENSOR (for Intake Side)
    GTY312857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the camshaft position sensor connector.
    2. Remove the bolt and camshaft position sensor.
