Removal [12/2012 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    See step  2

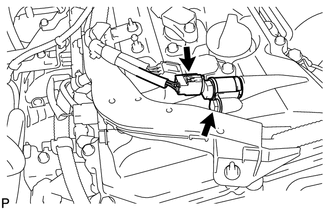

  2. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side)
    1. Disconnect the camshaft timing oil control valve assembly connector.
      GTY296373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and camshaft timing oil control valve assembly.
    3. Remove the O-ring from the camshaft timing oil control valve assembly.

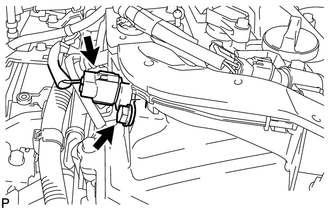

  3. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side)
    1. Disconnect the camshaft timing oil control valve assembly connector.
      GTY296374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and camshaft timing oil control valve assembly.
    3. Remove the O-ring from the camshaft timing oil control valve assembly.
