Installation [12/2012 - ]: Procedure

  1. INSTALL NO. 1 MANIFOLD CONVERTER INSULATOR
    1. Install the No. 1 manifold converter insulator with the 4 bolts.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  2. INSTALL EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY
    1. GTY169414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install a new gasket to the cylinder head.

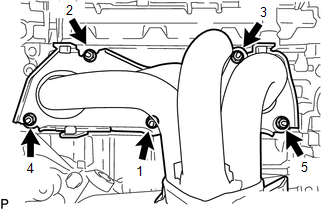

    2. GTY374608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Temporarily install the exhaust manifold converter sub-assembly with the 5 nuts.

    3. Tighten the 5 nuts in the sequence shown in the illustration.

      Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

  3. INSTALL NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
    1. Install the No. 2 exhaust manifold heat insulator with the 2 bolts.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  4. INSTALL NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
    1. Install the No. 1 exhaust manifold heat insulator with the 4 bolts.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  5. INSTALL NO. 2 MANIFOLD STAY
    1. Install the No. 2 manifold stay with the bolt and nut.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

  6. INSTALL MANIFOLD STAY
    1. Install the manifold stay with the bolt and nut.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

  7. INSTALL AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)

    Refer to PROCEDURE - Step 1

  8. INSTALL RADIATOR HOSE CLAMP

    Refer to PROCEDURE - Step 13 [12/2012 - 10/2015] , or refer to PROCEDURE - Step 13 [10/2015 - 08/2017] , or refer to PROCEDURE - Step 14 [08/2017 - ]

  9. INSTALL ENGINE OIL LEVEL DIPSTICK GUIDE

    Refer to PROCEDURE - Step 12

  10. INSTALL FRONT EXHAUST PIPE SUB-ASSEMBLY
    1. Using a vernier caliper, measure the free length of the compression spring.
      GTY178035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Minimum length

      41.5 mm (1.63 in.)

      If the length is less than the minimum, replace the compression spring.

    2. Using a wire brush, remove any foreign matter from the gasket installation surface.
    3. Using a plastic-faced hammer and wooden block, tap in a new gasket until its surface is flush with the exhaust manifold converter sub-assembly.
      GTY360822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Gasket
      *2 Wooden Block
      NOTE:
      • Be sure to install the gasket so that it faces the correct direction.
      • Do not reuse the gasket.
      • Do not damage the gasket.
      • When connecting the front exhaust pipe assembly, do not push in the gasket with the front exhaust pipe assembly.
    4. Install a new gasket to the front exhaust pipe sub-assembly.
    5. Install the front exhaust pipe sub-assembly with the 2 compression springs and 4 bolts.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

    6. Connect the heated oxygen sensor connector.
  11. INSTALL GENERATOR ASSEMBLY

    Refer to INSTALLATION [12/2012 - ]

  12. INSPECT FOR EXHAUST GAS LEAK

    See step  6
