Replacement [12/2012 - ]: Procedure
- REPLACE RING PIN NOTE:
It is not necessary to remove the ring pin unless it is being replaced.
- Remove the 12 ring pins.
- Using a plastic-faced hammer, install 12 new ring pins.

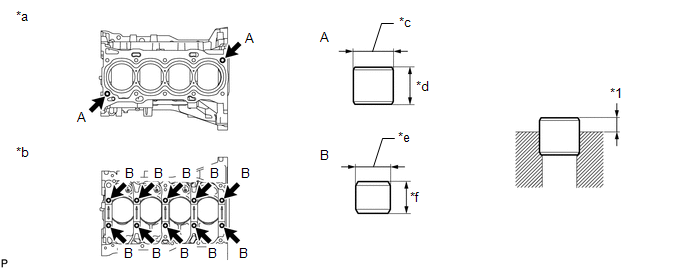

*1 Protrusion Height - - *a Upper Side *b Lower Side *c 15 mm (0.591 in.) *d 14 mm (0.551 in.) *e 13 mm (0.512 in.) *f 12 mm (0.472 in.) Standard Protrusion Height
Item Specified Condition A 5.0 to 7.0 mm (0.197 to 0.276 in.) B 4.0 to 7.0 mm (0.157 to 0.276 in.)
- REPLACE STRAIGHT PIN NOTE:
It is not necessary to remove the straight pin unless it is being replaced.
- Remove the 14 straight pins.
- Using a plastic-faced hammer, install 14 new straight pins.

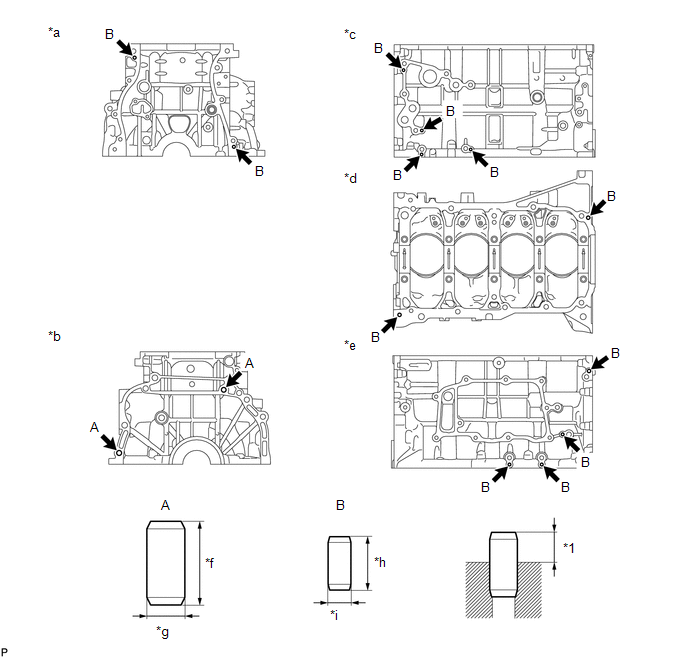

*1 Protrusion Height - - *a Front Side *b Rear Side *c LH Side *d Lower Side *e RH Side *f 22 mm (0.866 in.) *g 10 mm (0.394 in.) *h 14 mm (0.551 in.) *i 6 mm (0.236 in.) - - Standard Protrusion Height
Item Specified Condition A 11.0 to 13.0 mm (0.433 to 0.512 in.) B 5.0 to 7.0 mm (0.197 to 0.276 in.)
